12/31/2019
Radio Class
____________
12/30/2019
More shopping.
____________
12/29/2019

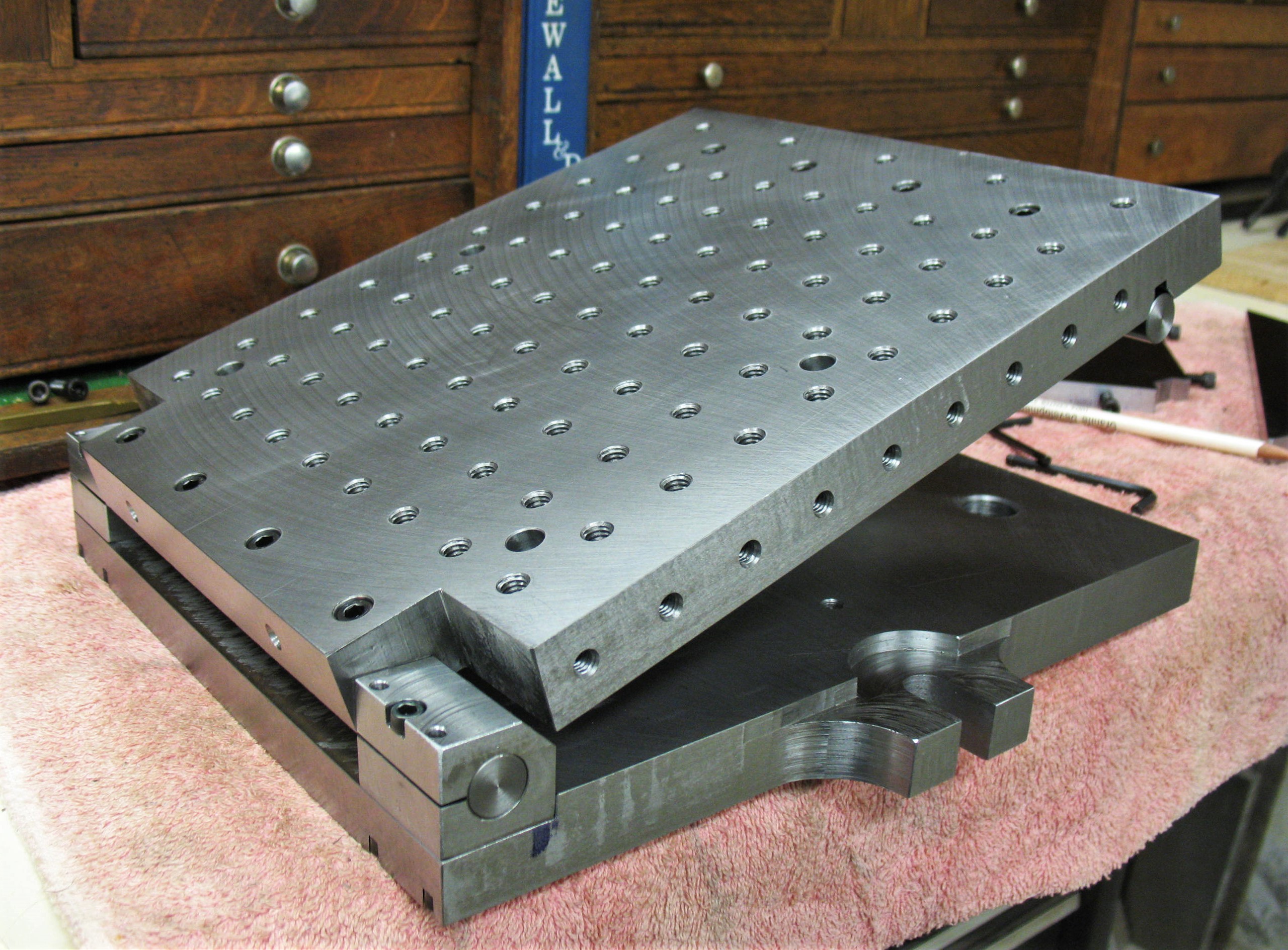

Sine Plate ready to use. Make time 106 hours.
___________
12/28/2019

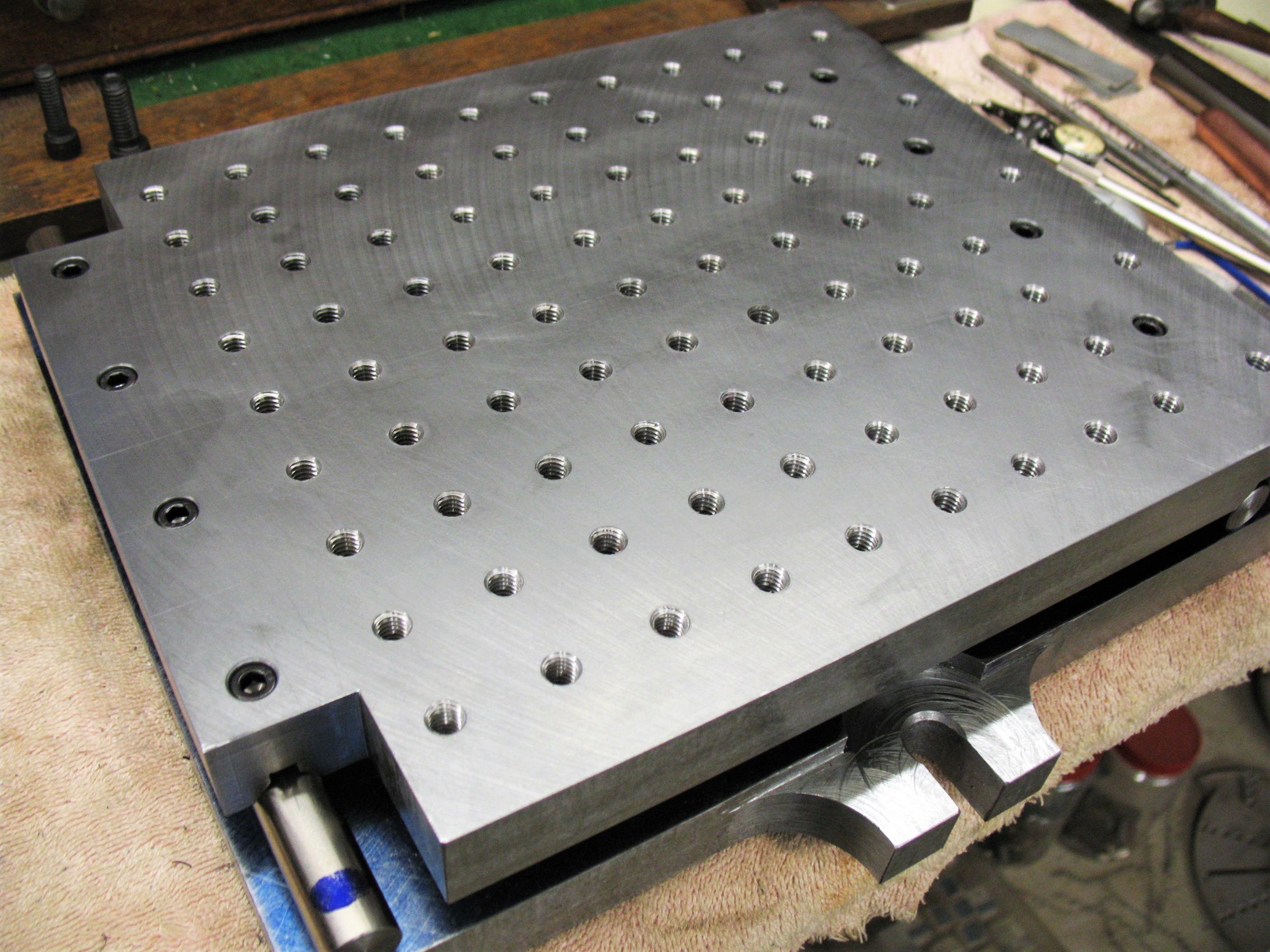

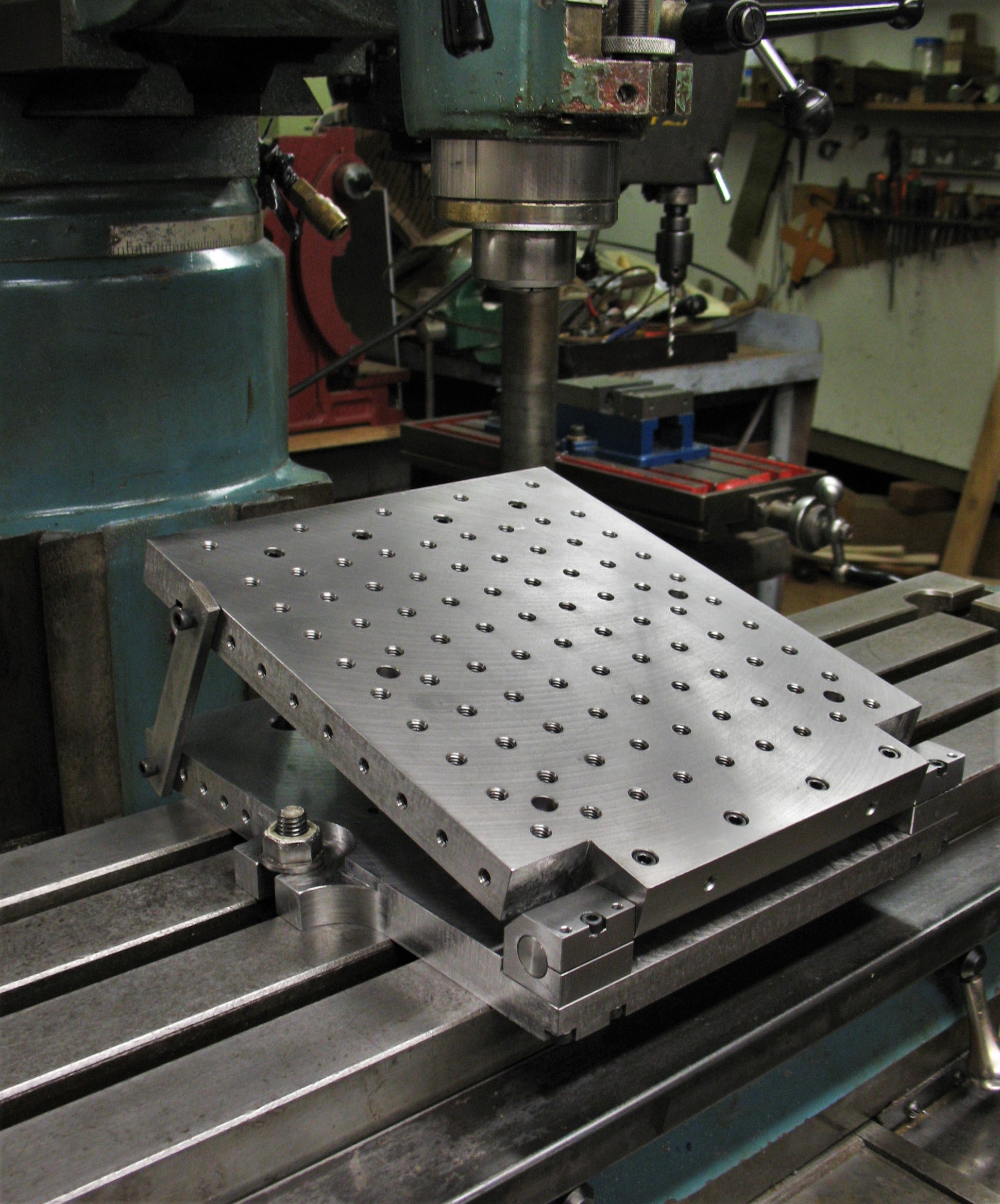

All the holes Drilled and Tapped for sides and clamps on top plate.
____________
12/27/2019

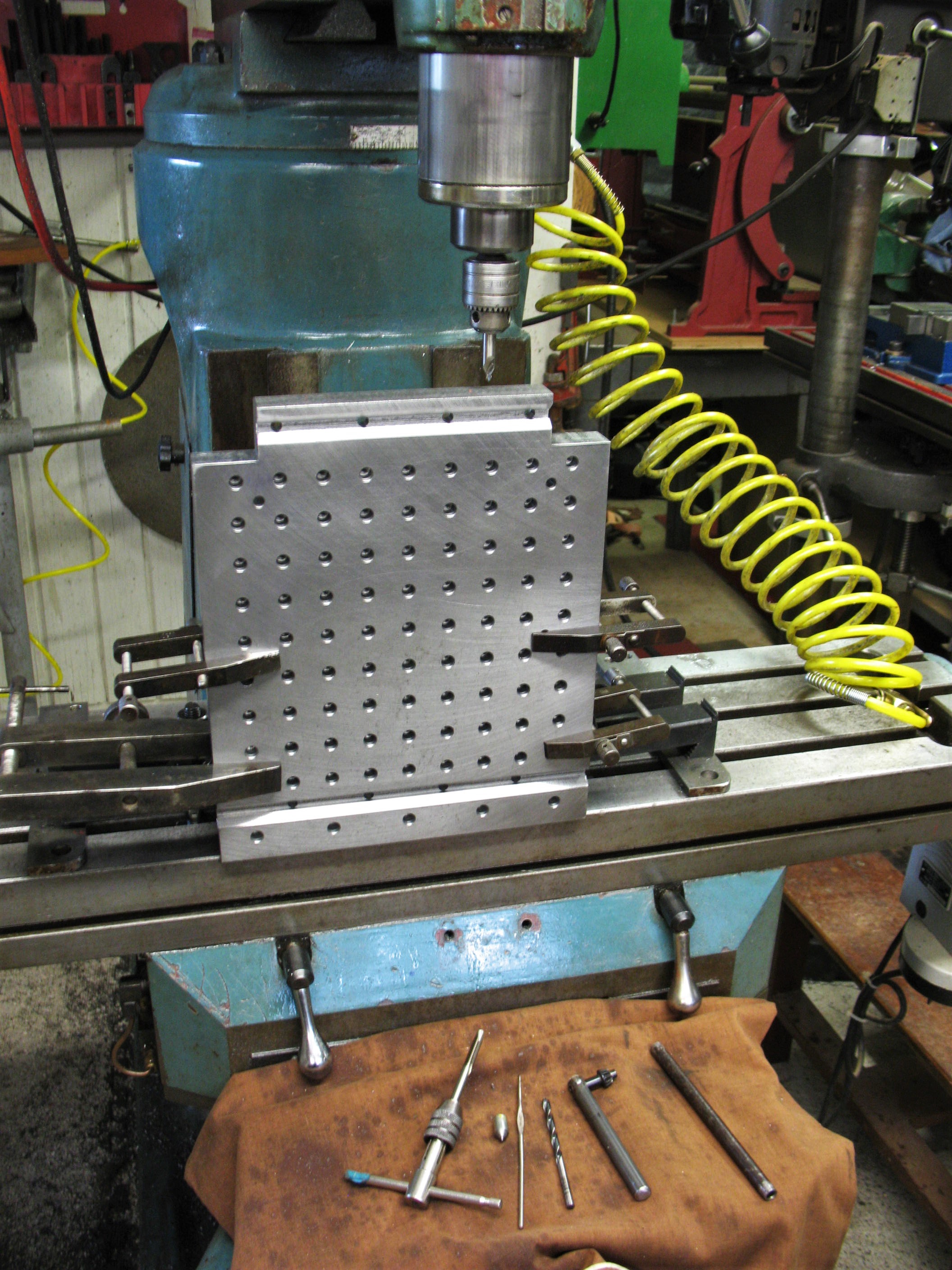

Drill and Tap holes around the Perimeter Edge of the Sine Plate
_____________
12/26/2019

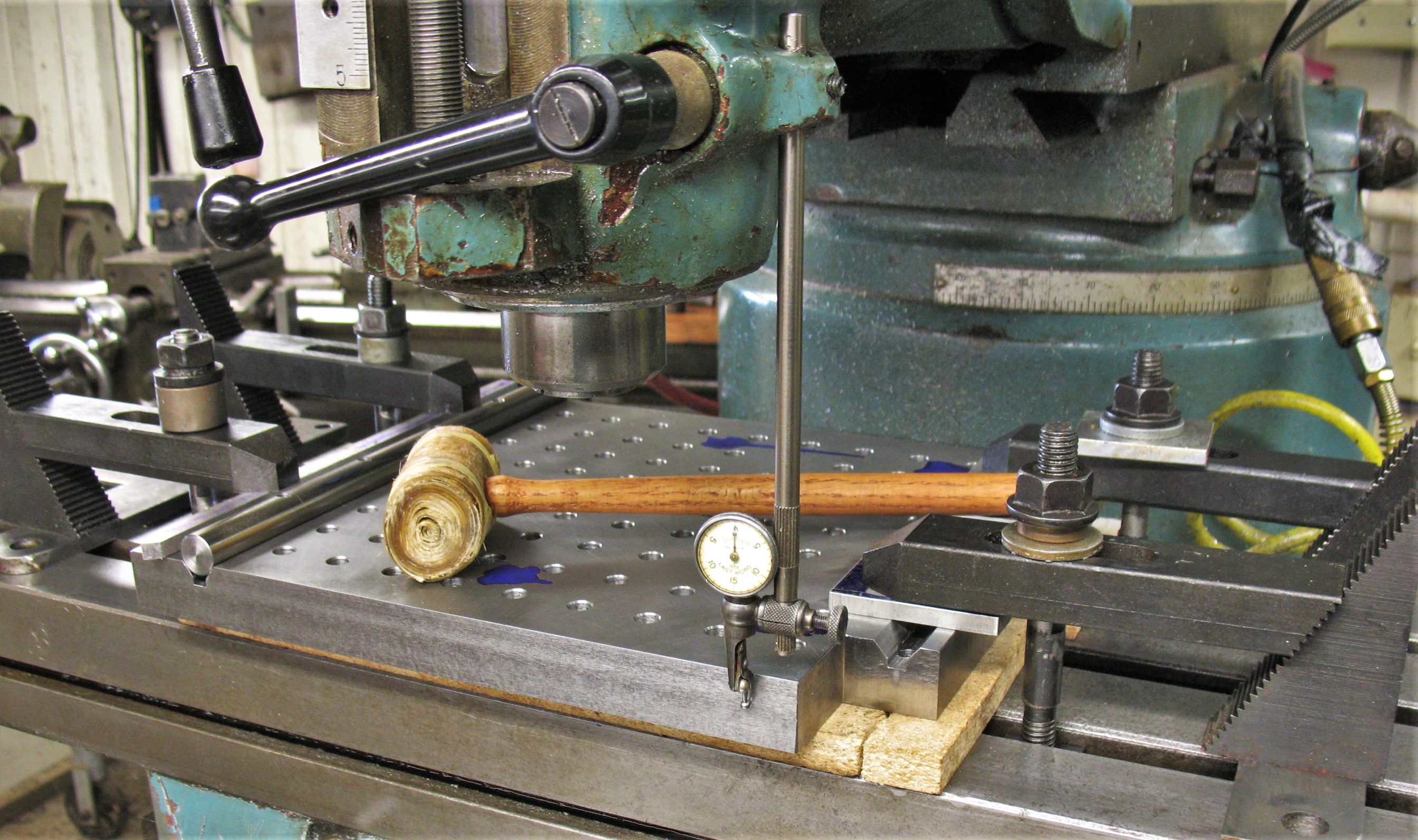

Used A New Home made Raw Hide Hammer to Indicate the Plate in,
Then drilled more holes.
____________
12/25/2019

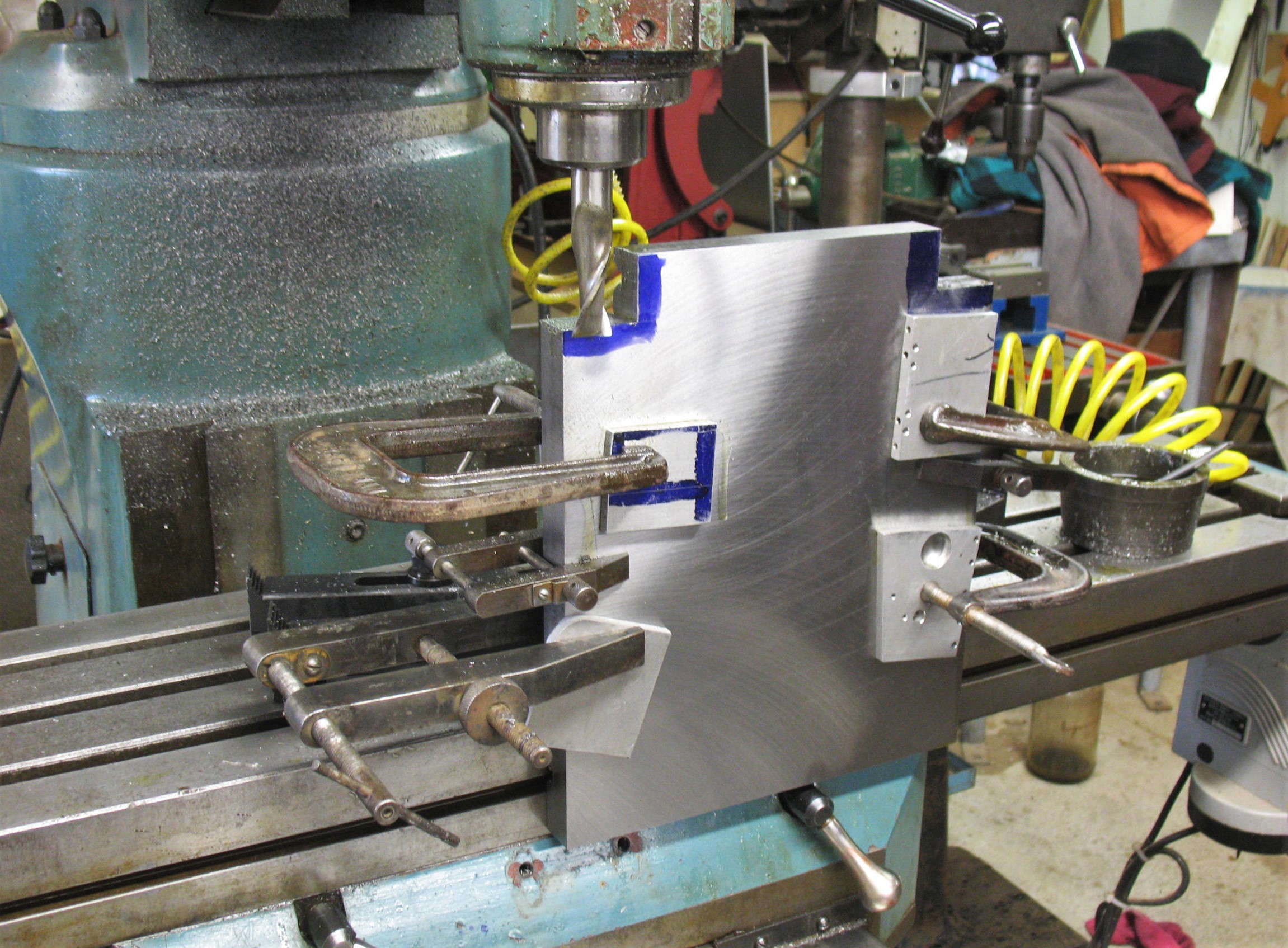

Added Plates to Sine Plate to make it an Angle Plate
_____________
12/24/2019
Sawed plate apart. Milled Side.
____________
12/23/2019
Milled Slots in Vice. Started Angle Plates to turn Sine Plate into Angle Plate
____________
12/22/2019

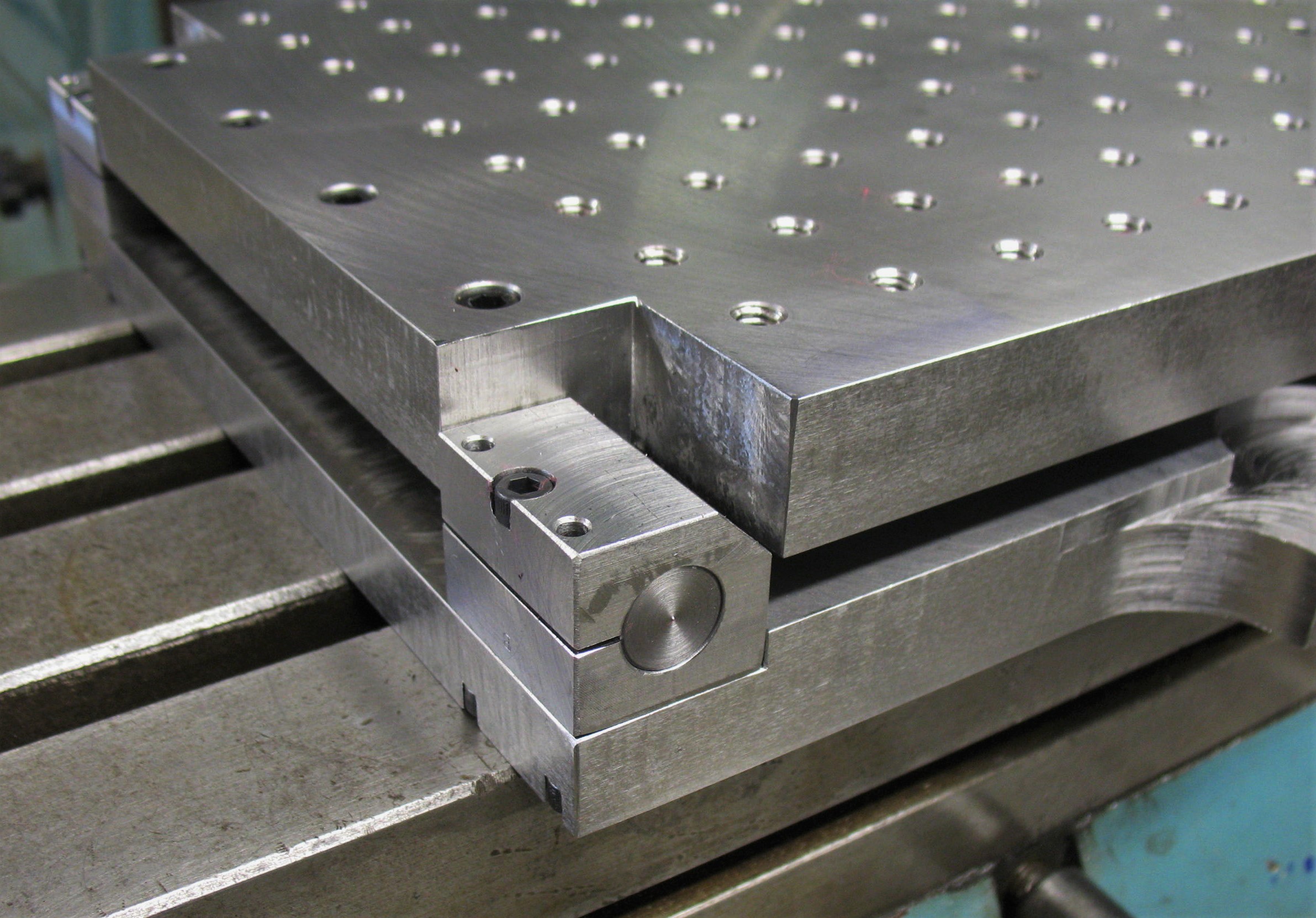

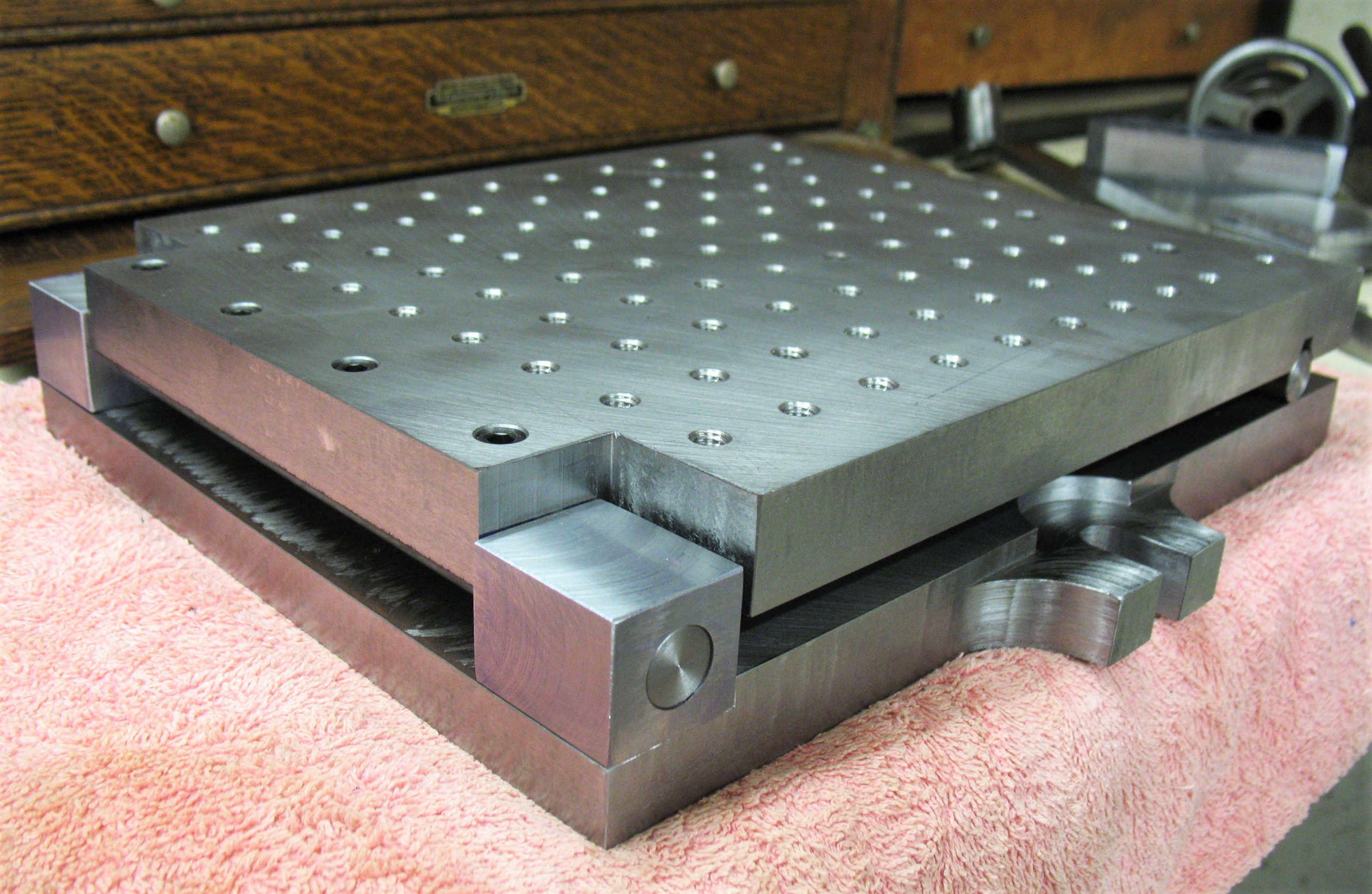

Pivot Blocks Mounted, Total Indicator run out on top of Plate is .001 inch over 12 inches.
______________
12/21/2019

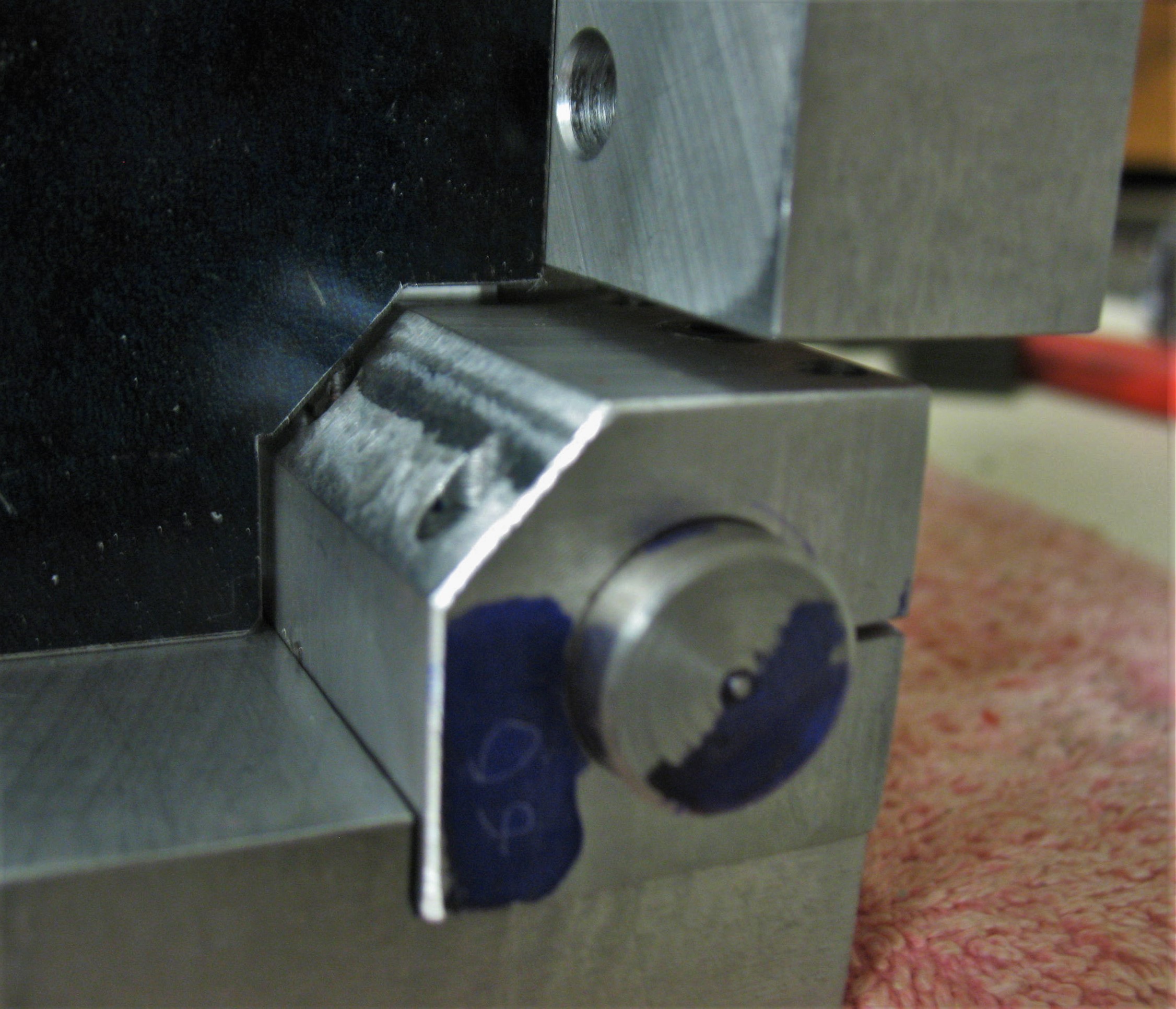

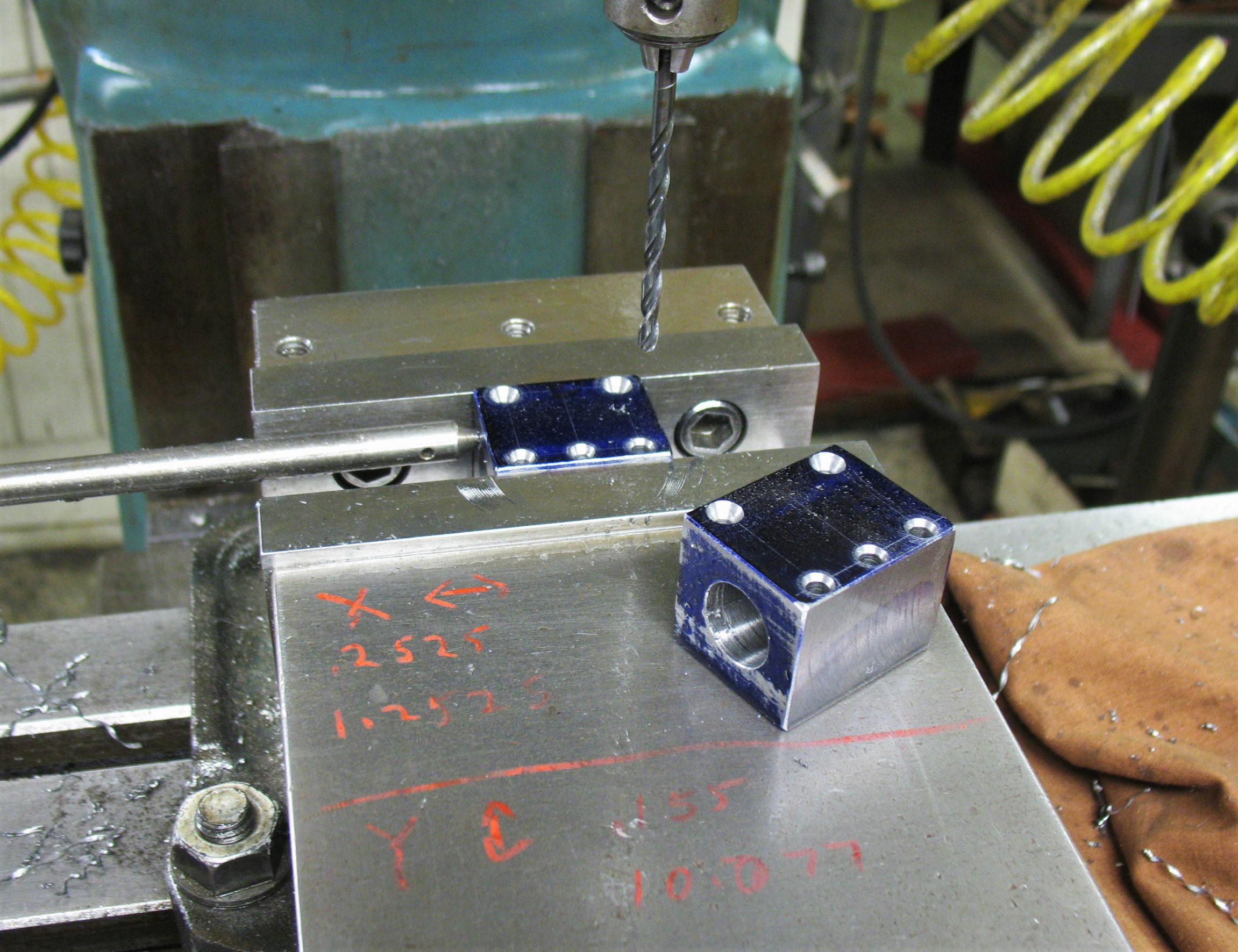

Drilled and Tapped Holes in Pivot Blocks
_____________
12/20/19
Shopping
___________
12/19/2019
Started the Pivot Blocks
___________
12/18/2019
More Milling on the Sine Plate
___________
12/17/2019
Radio Class
____________
12/16/2019
More Shopping
___________
12/15/2019
Rest
____________
12/14/2019
Robot Club
____________
12/13/2019

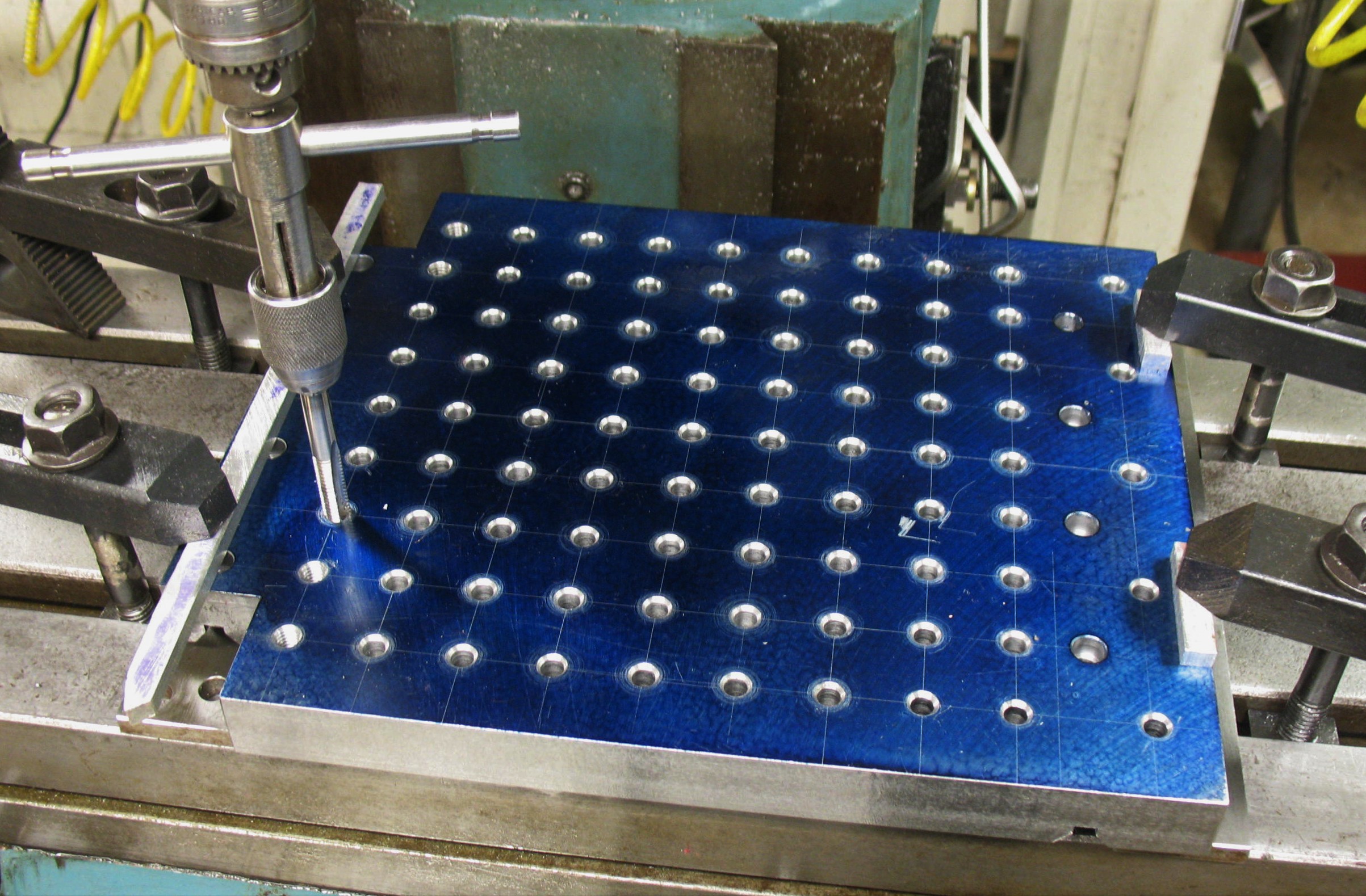

Holes Tapped and Roller Bars Mounted
____________
12/12/2019
88 holes to Tap
____________
12/11/2019
More work on Sine Plate
___________
12/10/2019
Radio Class
______________
12/09/2019
More work on sine plate.
____________
12/08/2019

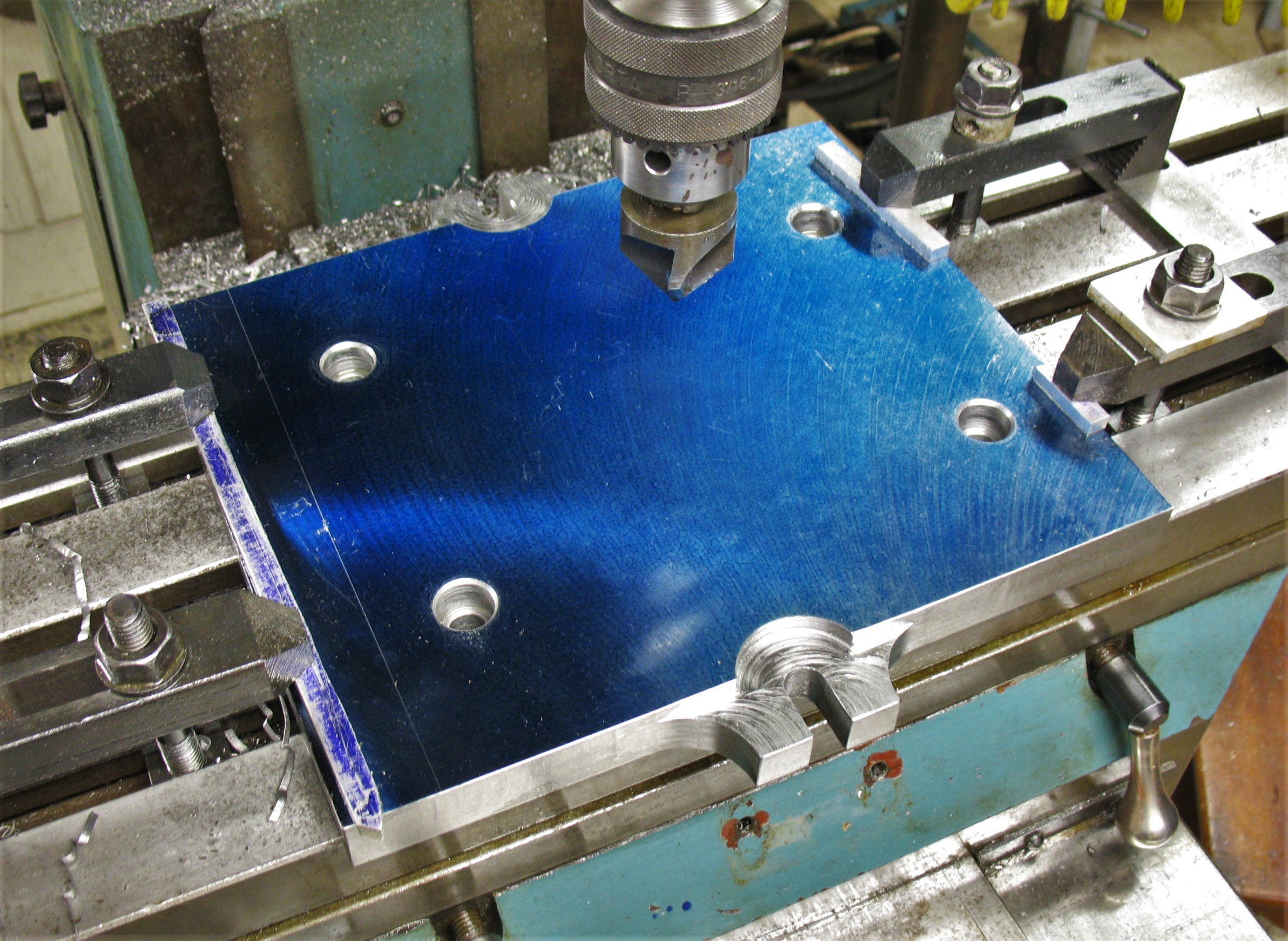

More Milling on Sine Plate
_____________
12/07/2019

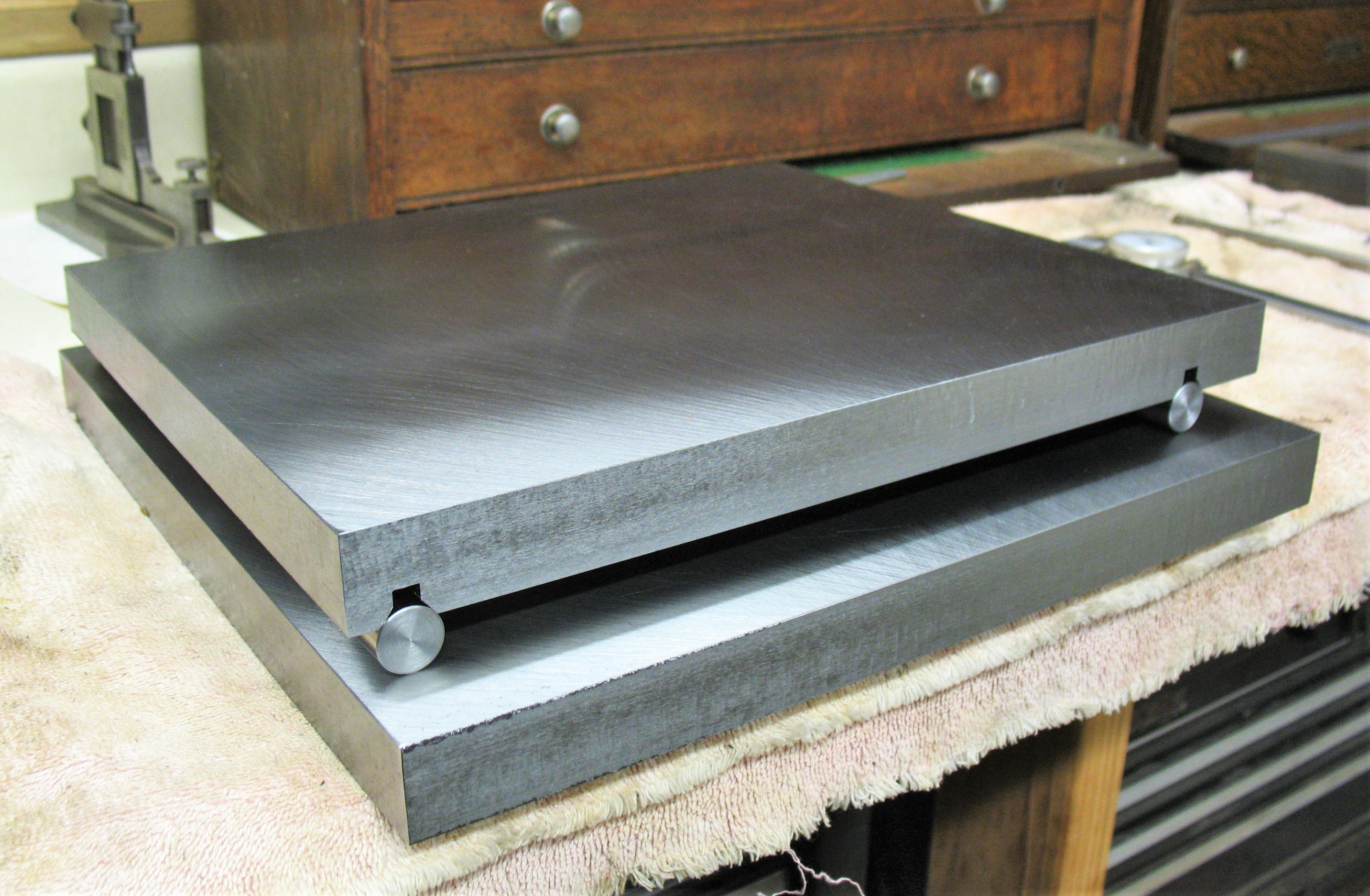

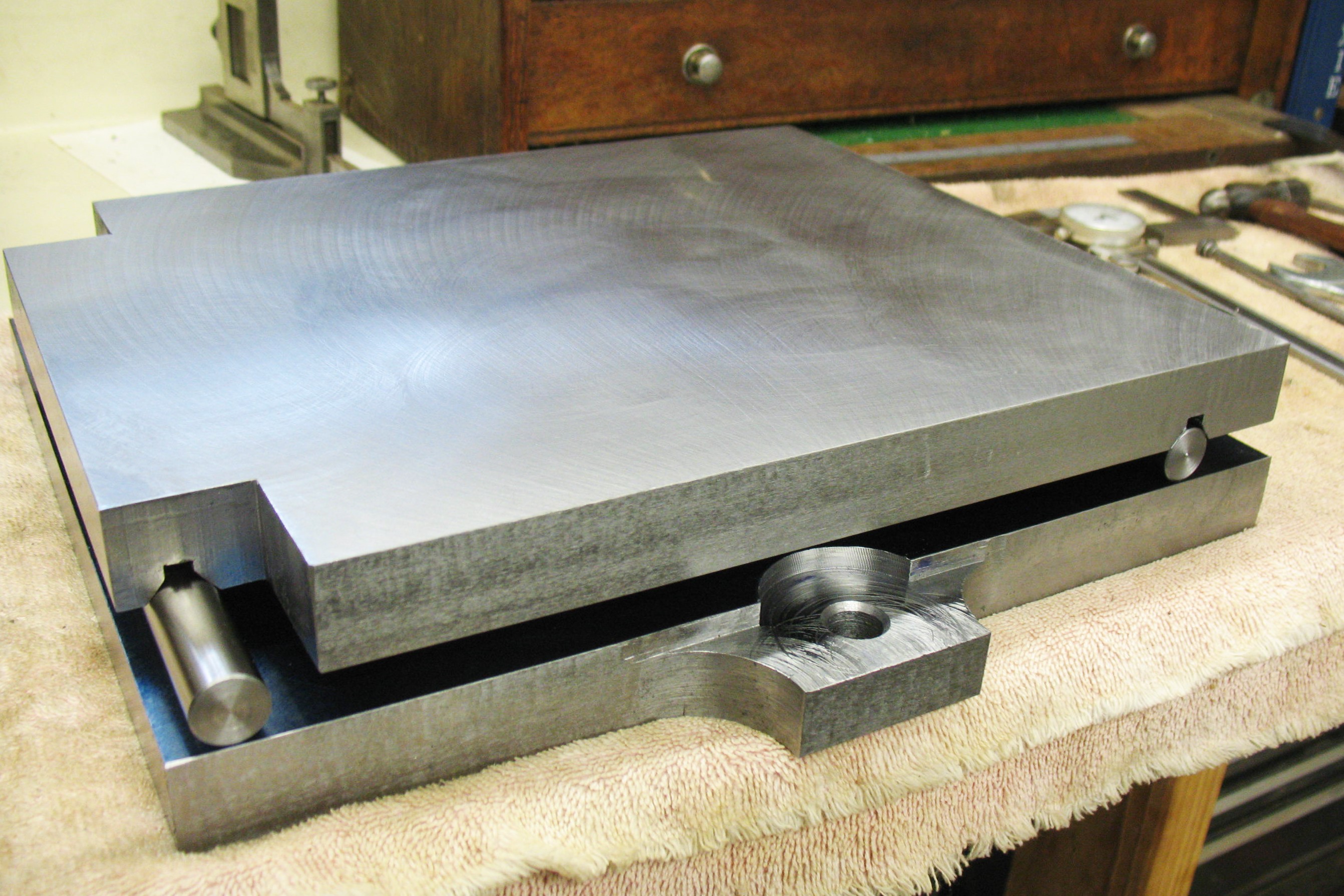

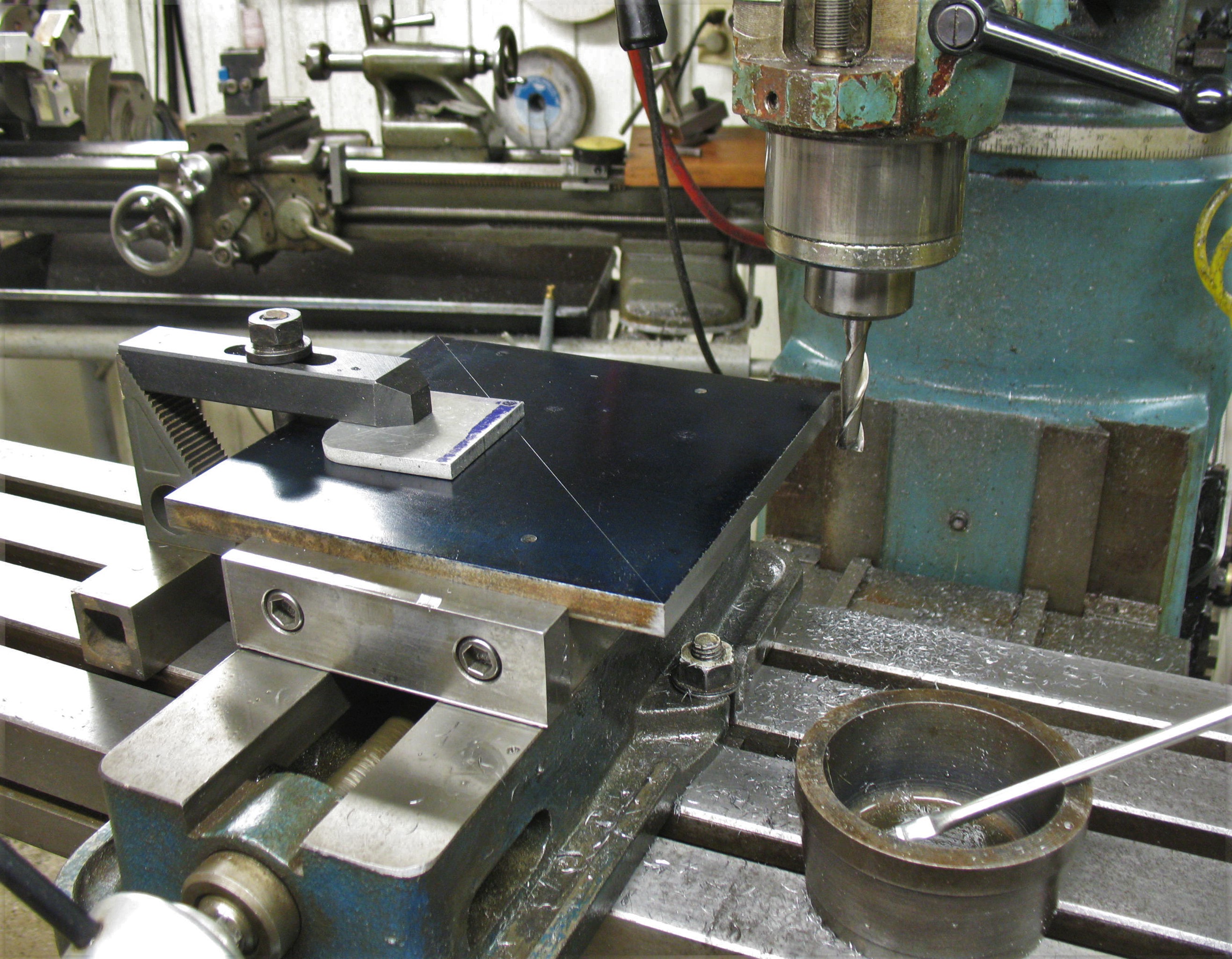

Starting to look like a Sine Plate
______________
12/06/2019

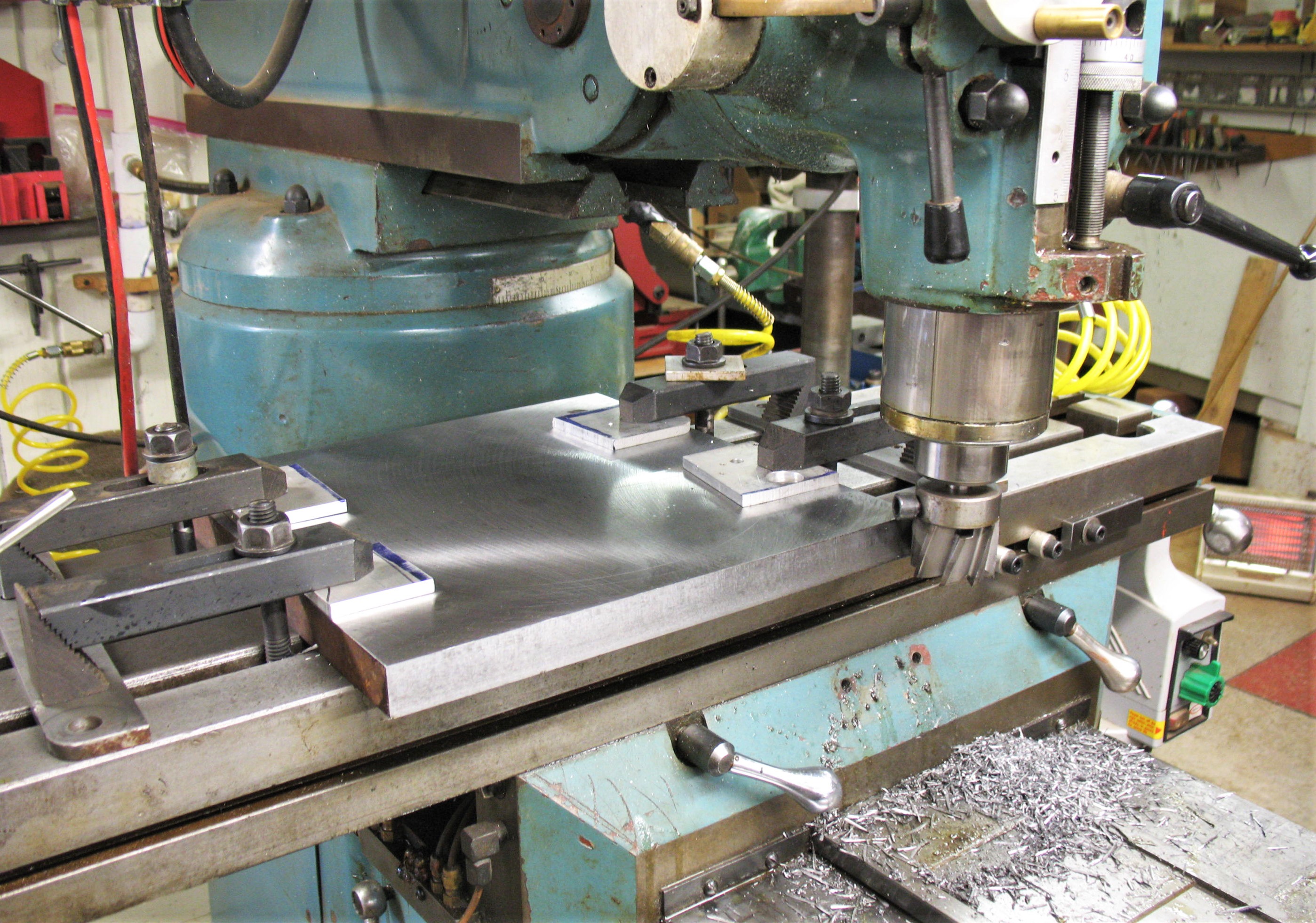

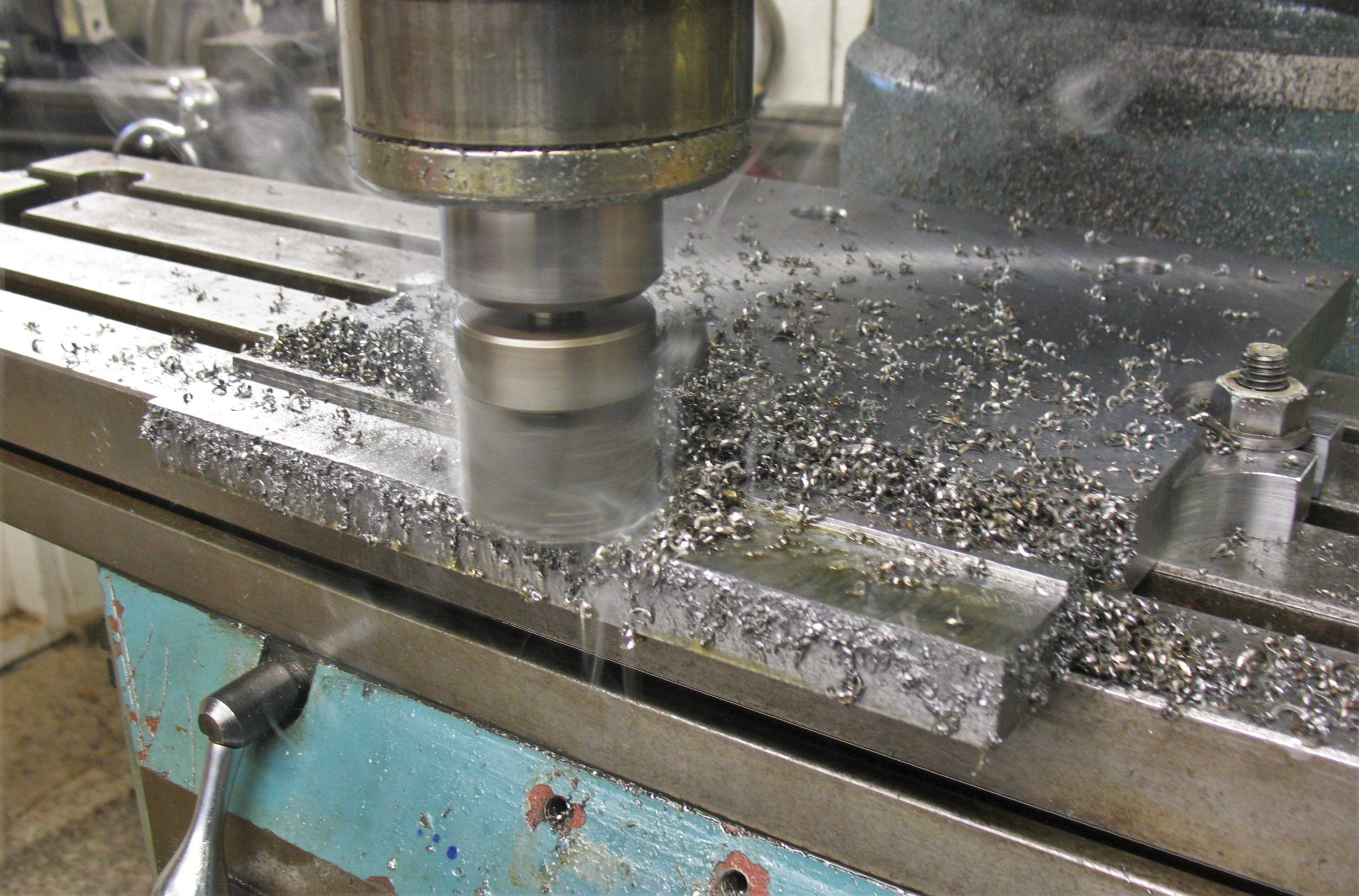

Sine Plates are Blanchard Ground and Now Milling them Square.
____________
12/05/2019

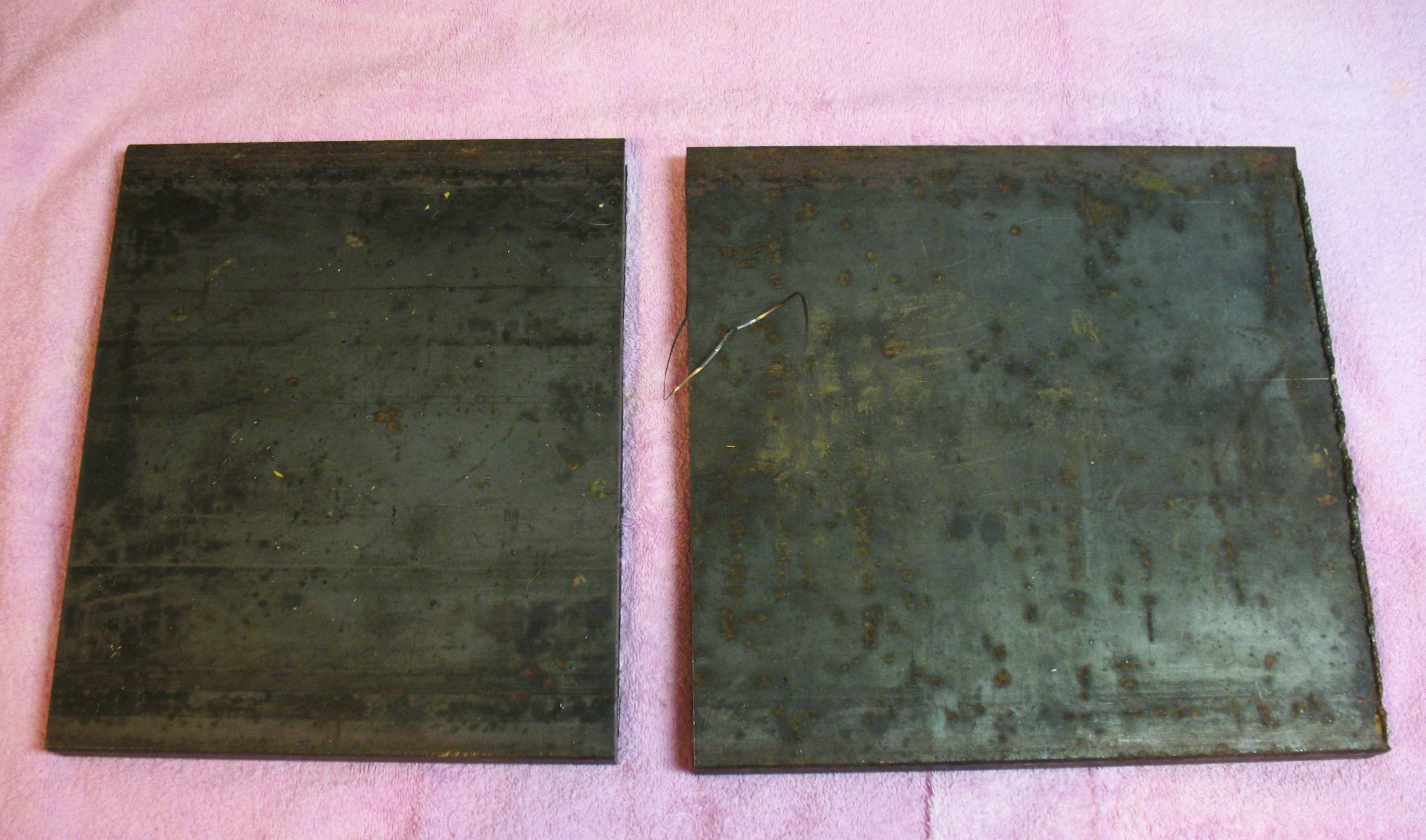

1 inch steel plate, 77 pounds. 12 x 12 and 10 x 12 for sine plate.
___________
12/04/2019

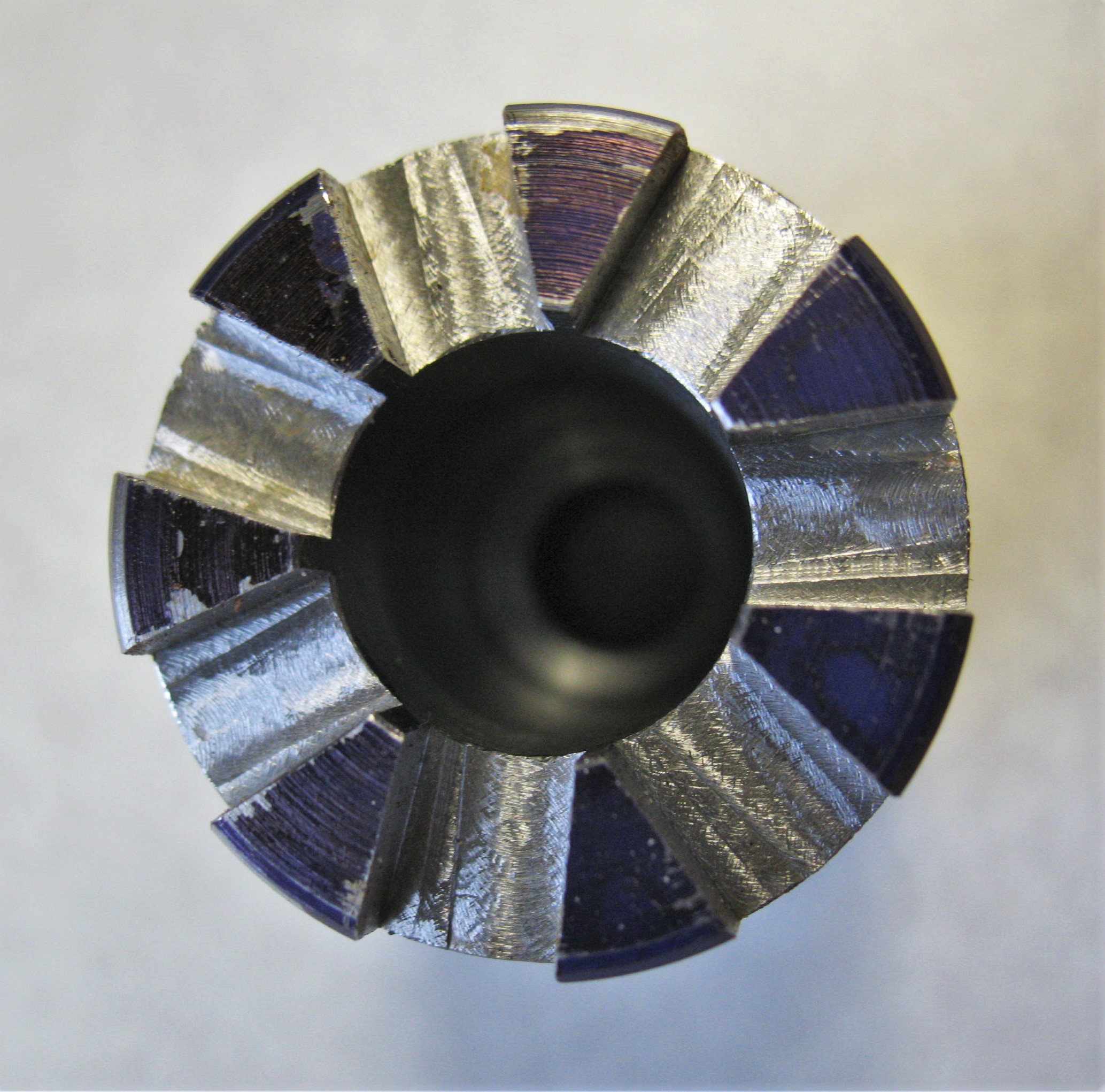

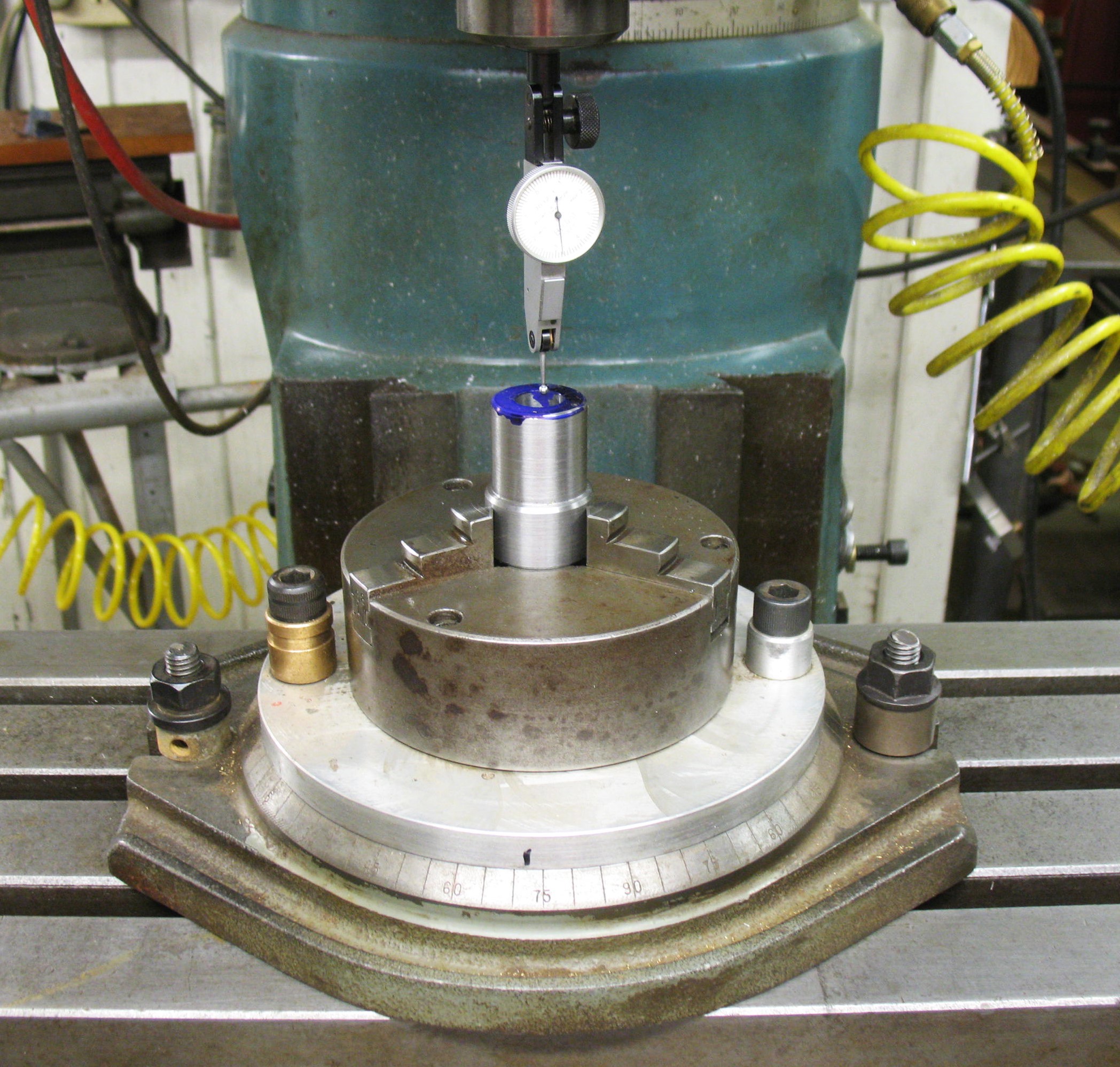

Machined the teeth into new Knee Drive for the Mill
_____________
12/03/2019
Worked in Machine Shop
___________
12/03/2019
Radio Class
____________
12/02/2019
Shopping
___________
12/01/2019
Rainy day, played with computer.
