Scroll down For this Month
________
2/28/2022

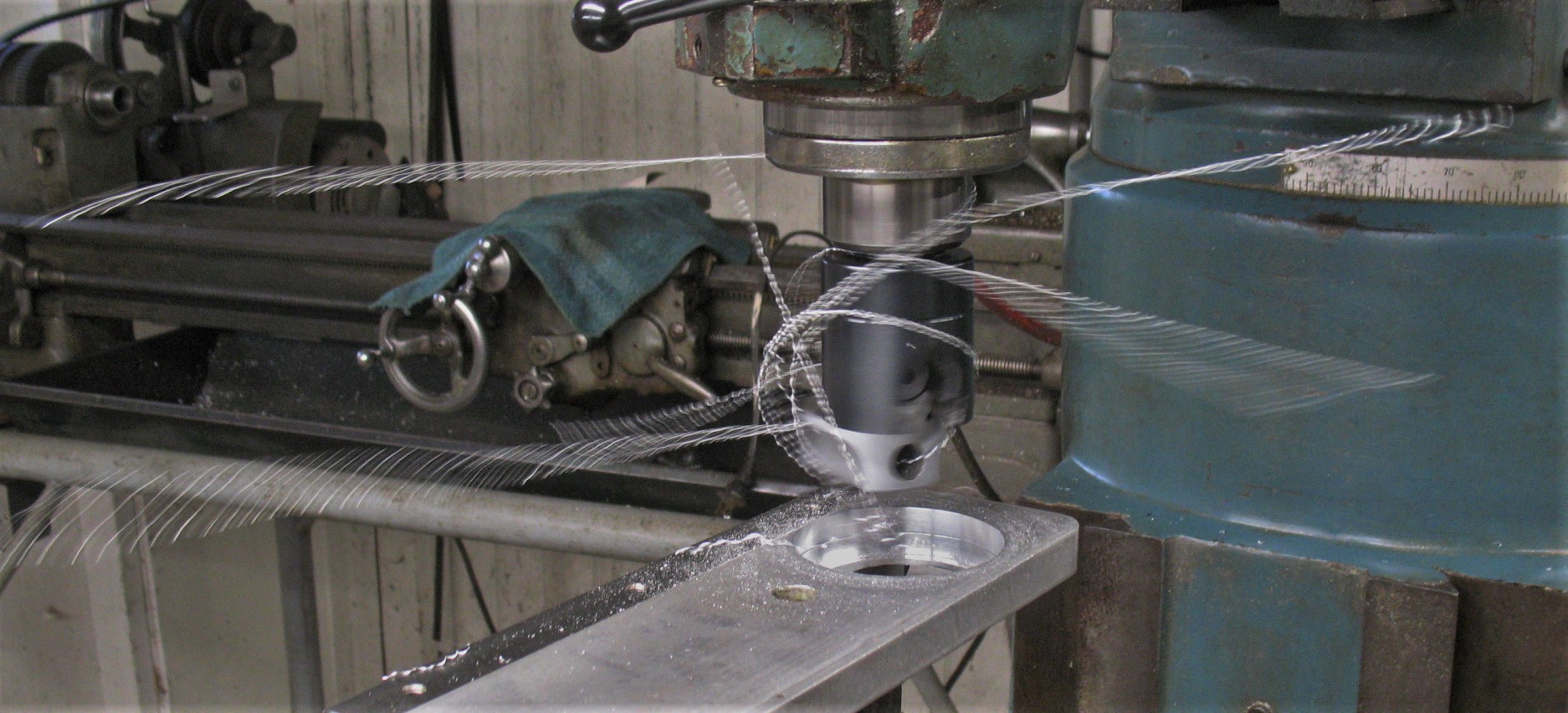

Bored Holes and Pressed Bearings In
________
2/27/2022

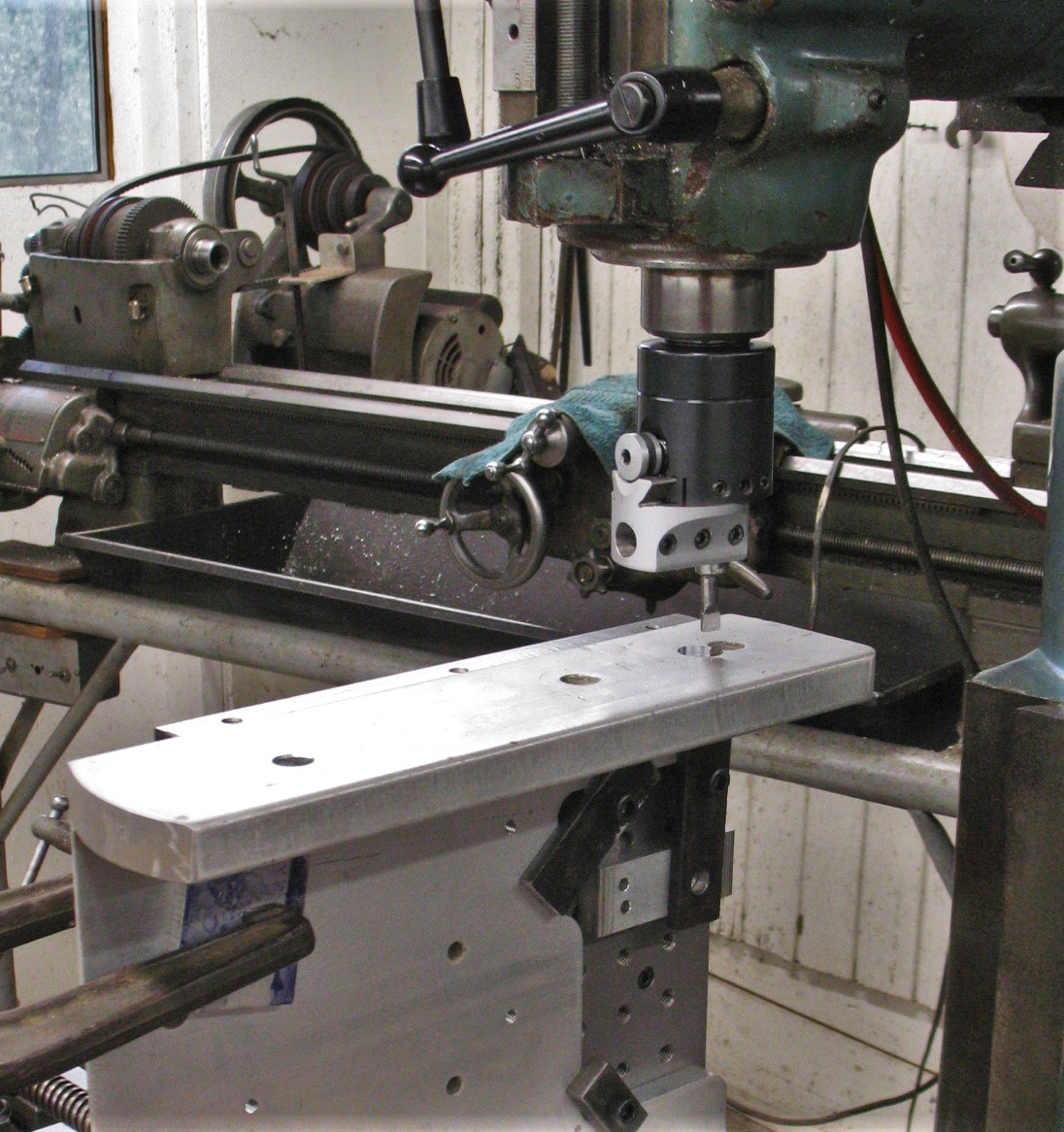

Clean Up, Head Stock Back Together, Set Up to Bore Holes For Bearings
________
2/26/2022

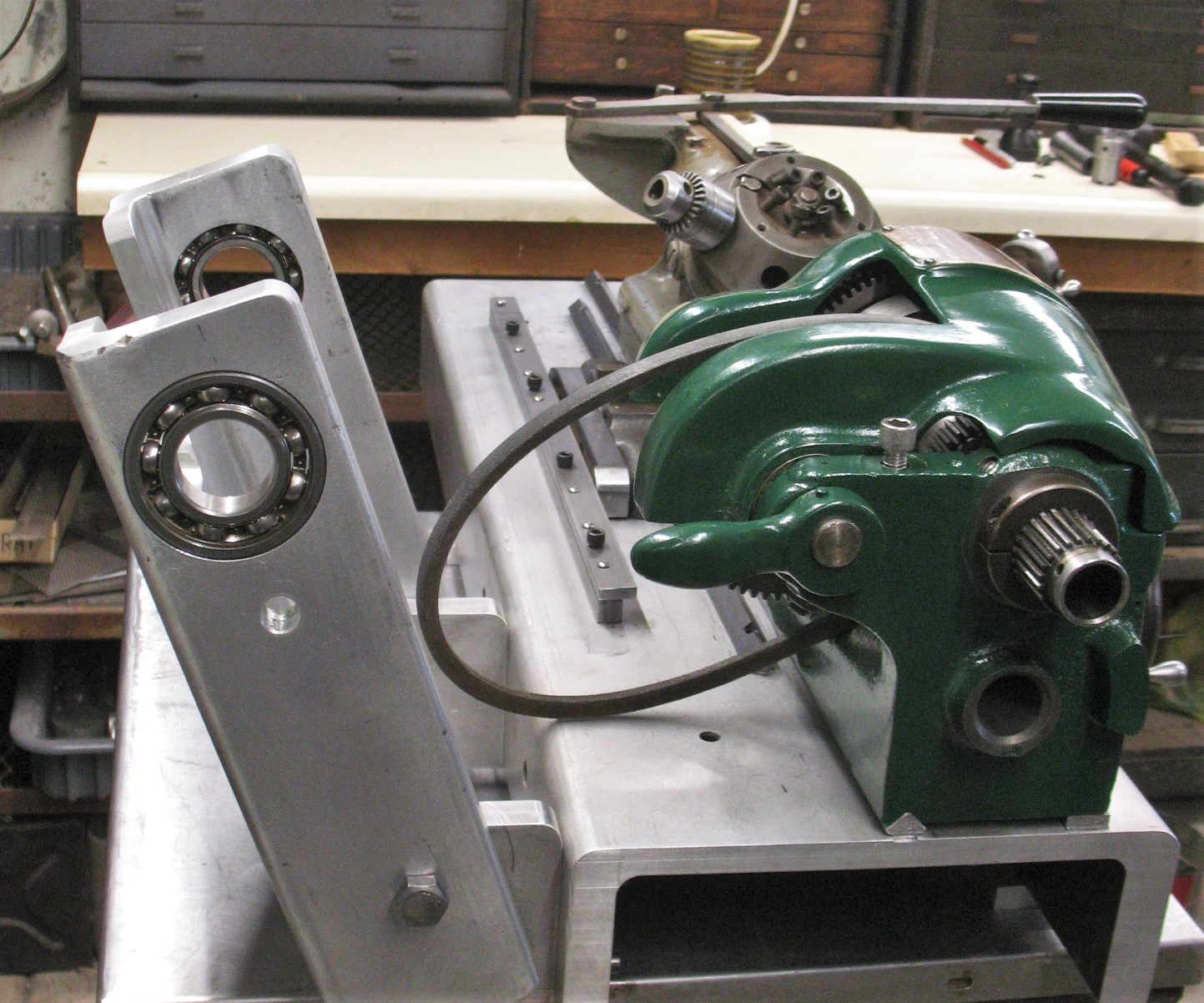

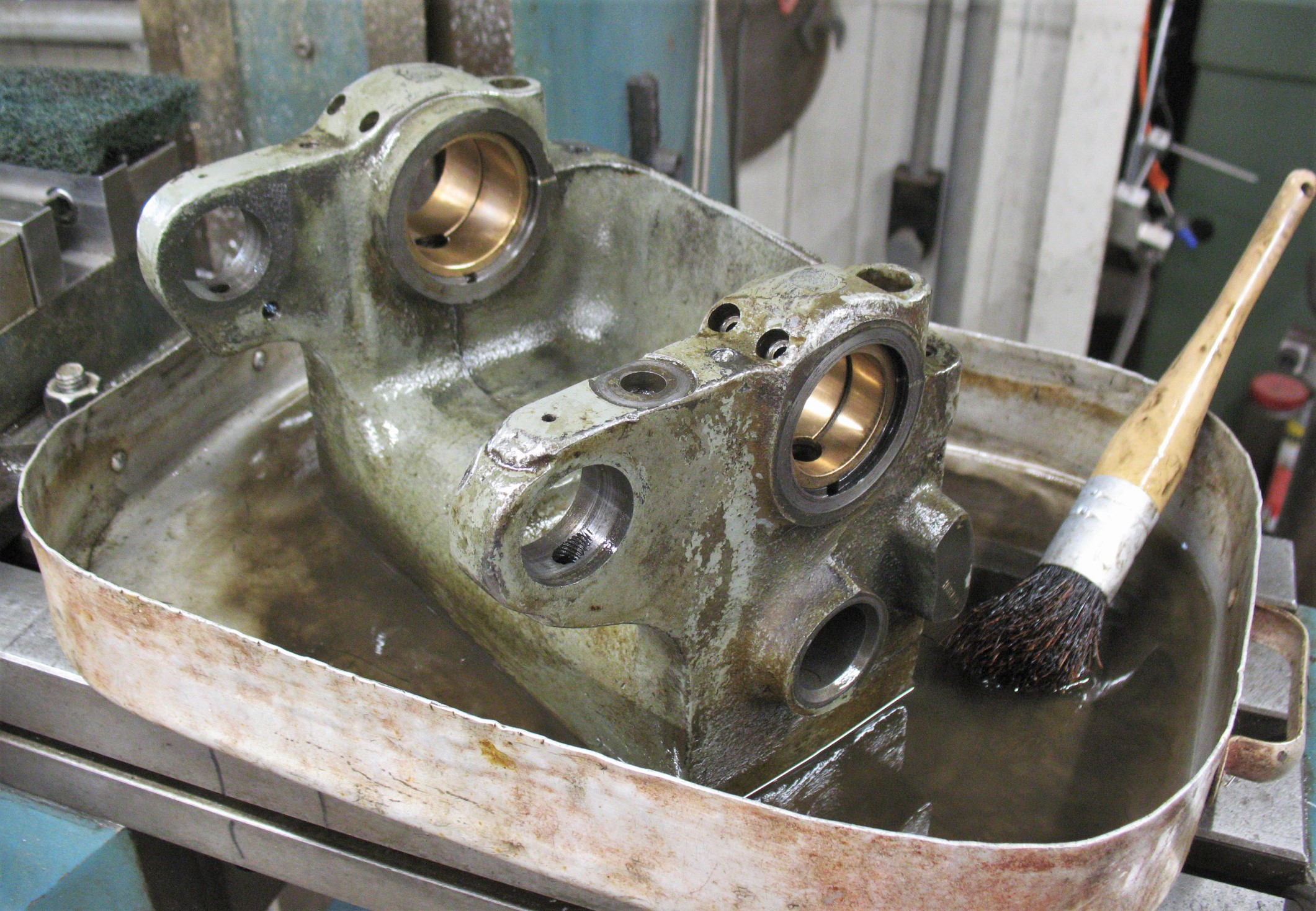

Had to take the Spindle out of the Head Stock to to put the V Belt on and
check the Bearing Height for the Transmission. So instead of putting it back
together, I decided to Clean and Paint it, Saving time to take it apart again.
________
2/25/2022
Hinges Done, Motor Mounted and Paint Removed from Motor Mount
________
2/24/2022
Reworked Motor Mount Top, Started Hinges For Motor Mount and Pulley Transmission
________
2/23/2022

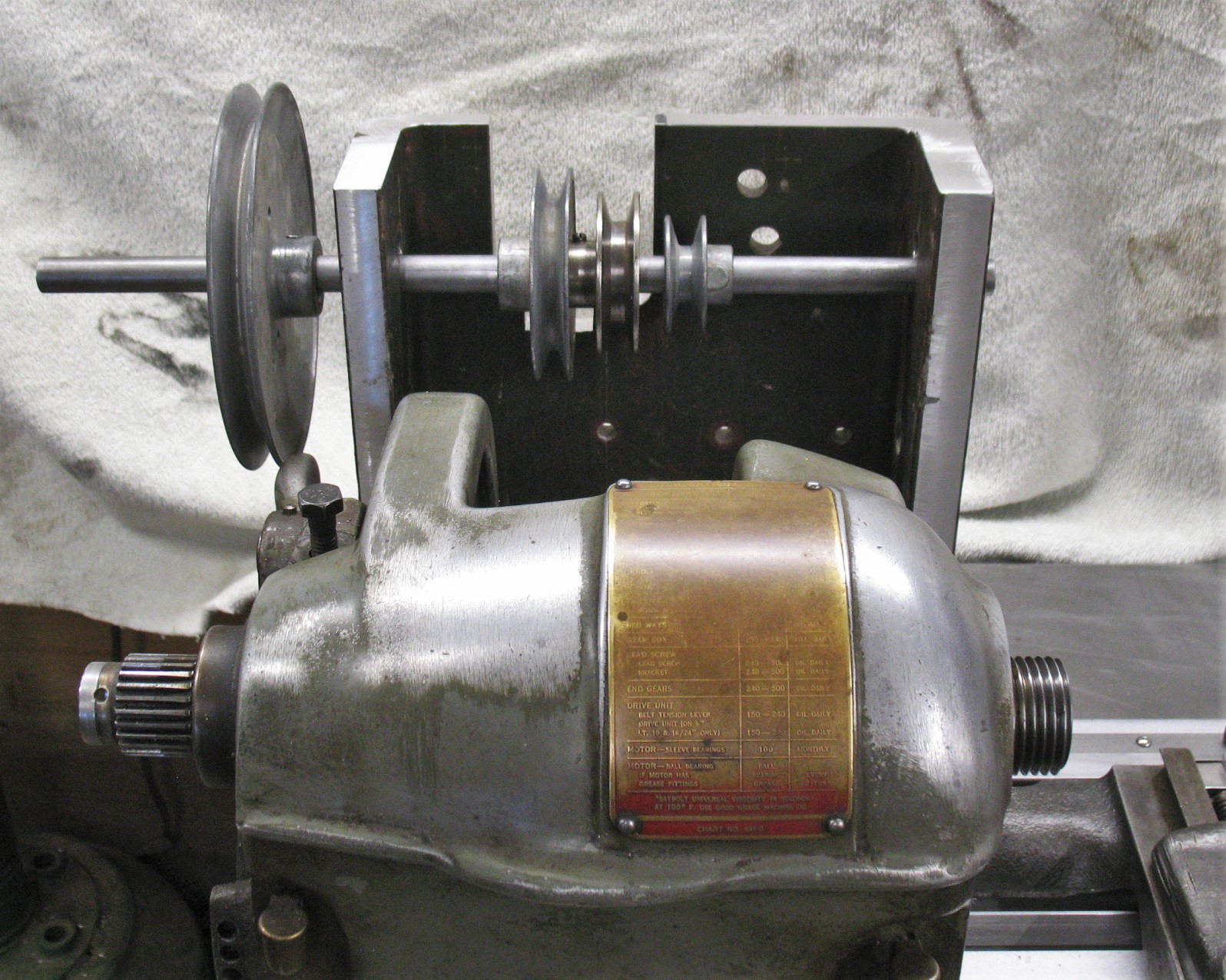

Worked on Transmission
________
2/22/2022

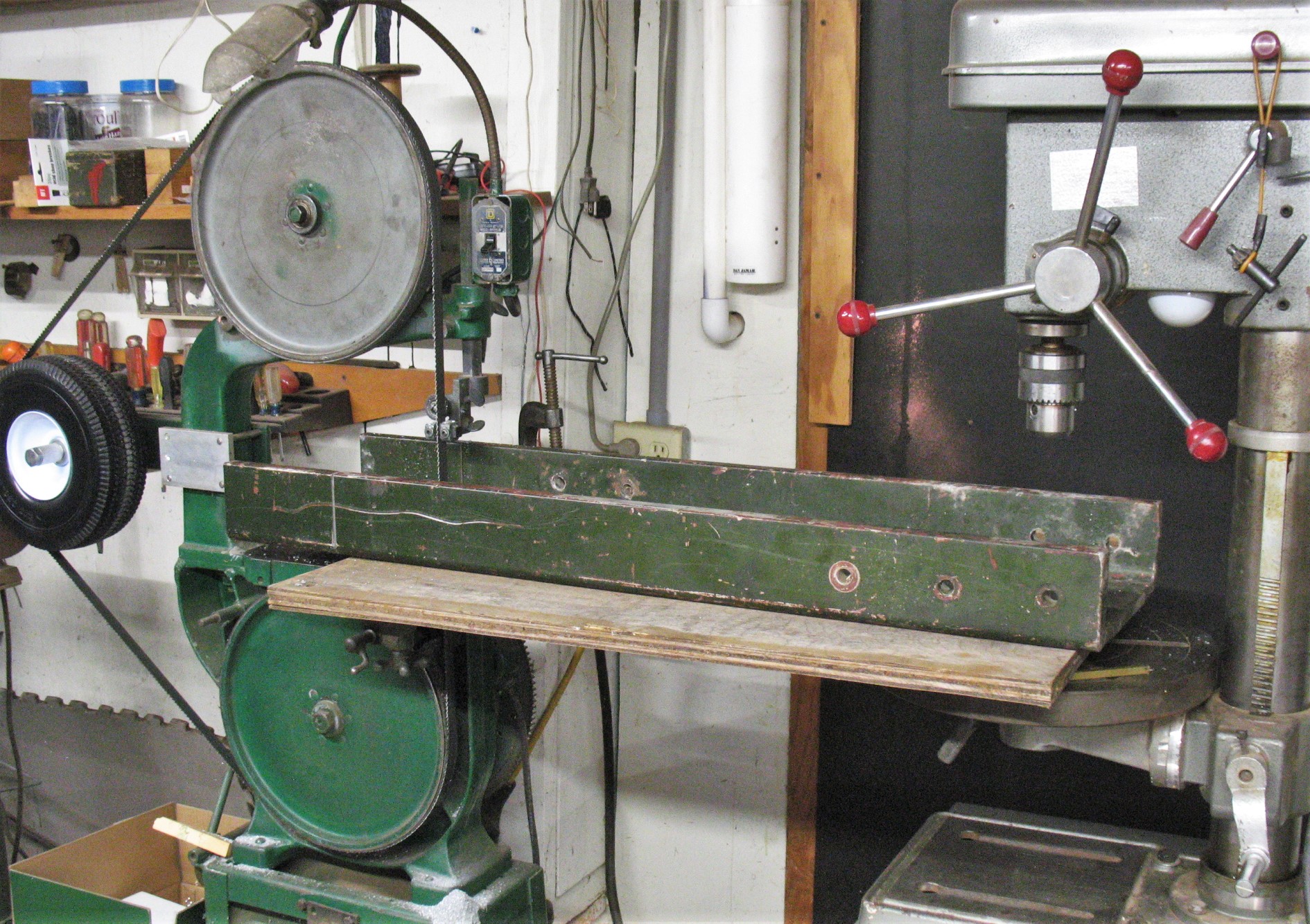

Cut Channel Pieces in Band Saw for Motor Mount and Pulley Transmission
________
2/21/2022

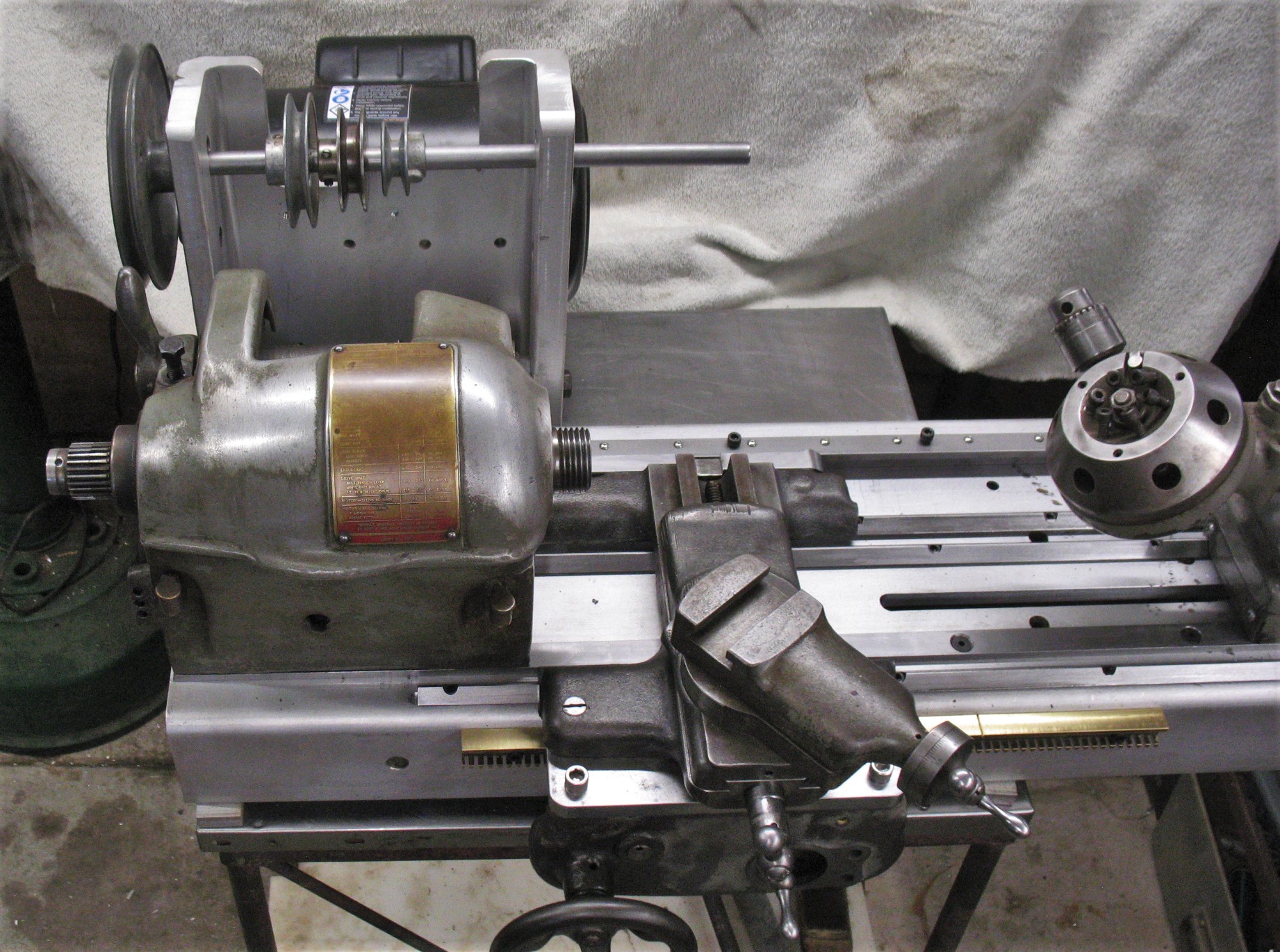

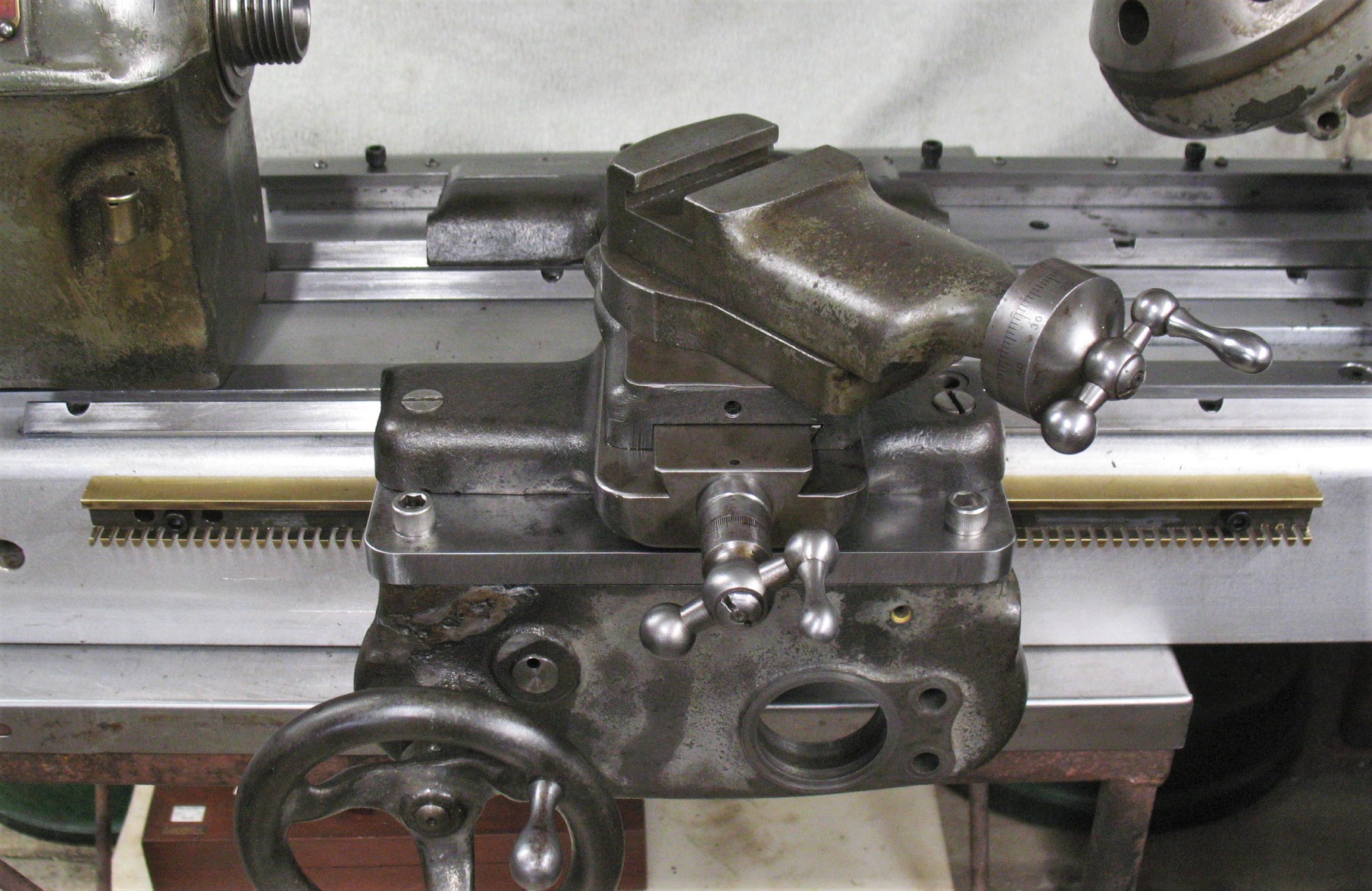

Rack Mounted to Bed
________
2/20/2022

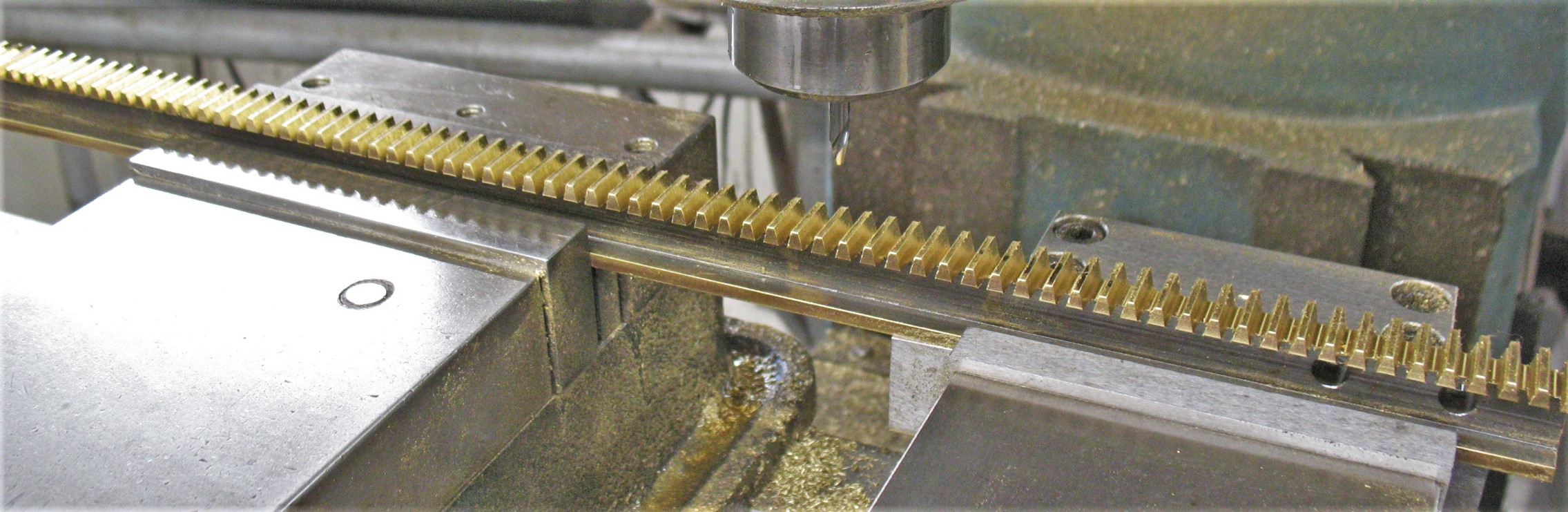

Made Rack for Pinion Gear on Carriage
________
2/19/2022
Machining Scrap Brass Stock for Rack, for Carriage travel.
________
2/18/2022
Back Clamp and Carriage Lock Installed
________
2/17/2022

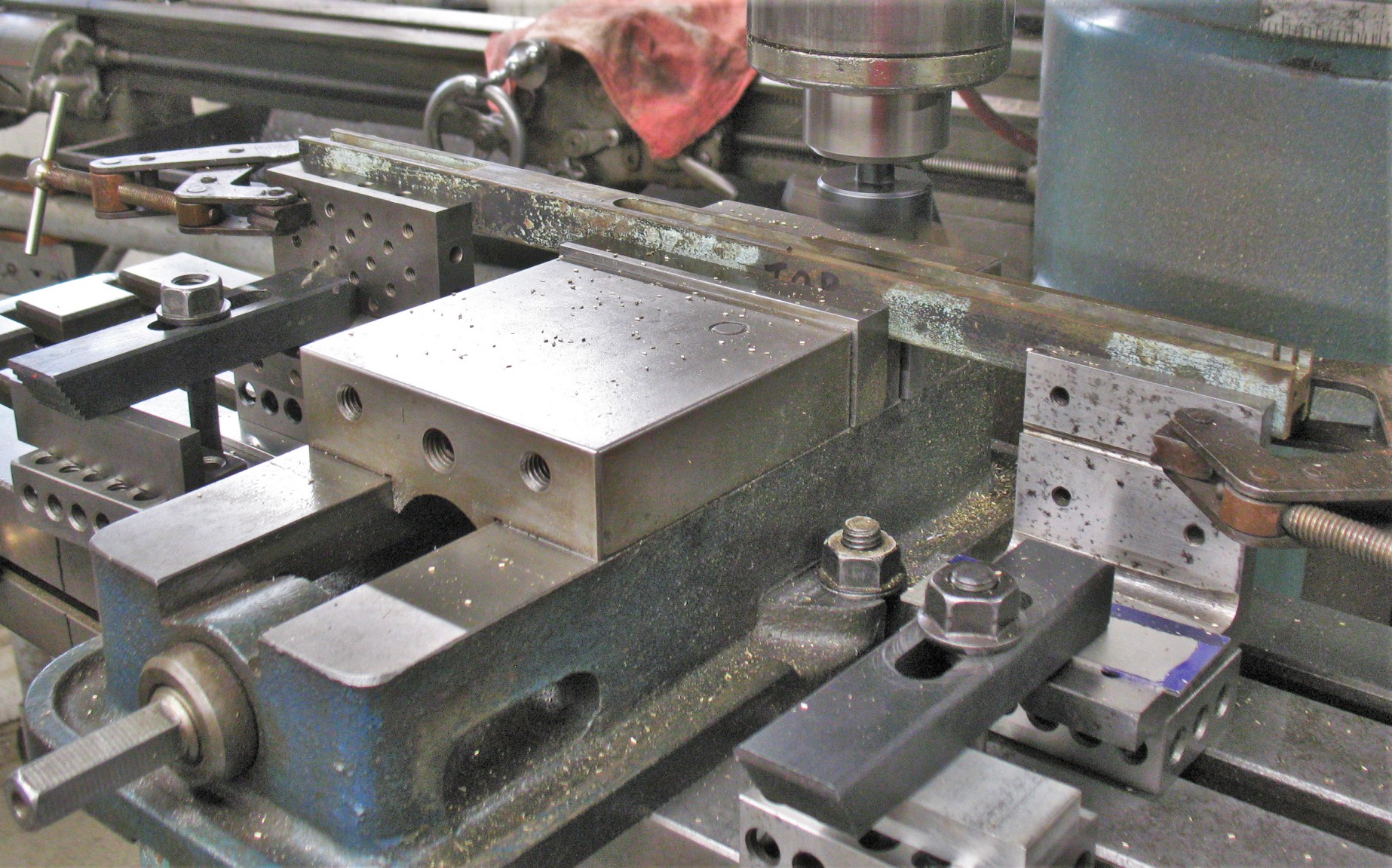

Set Up to Drill Holes
________
2/16/2022

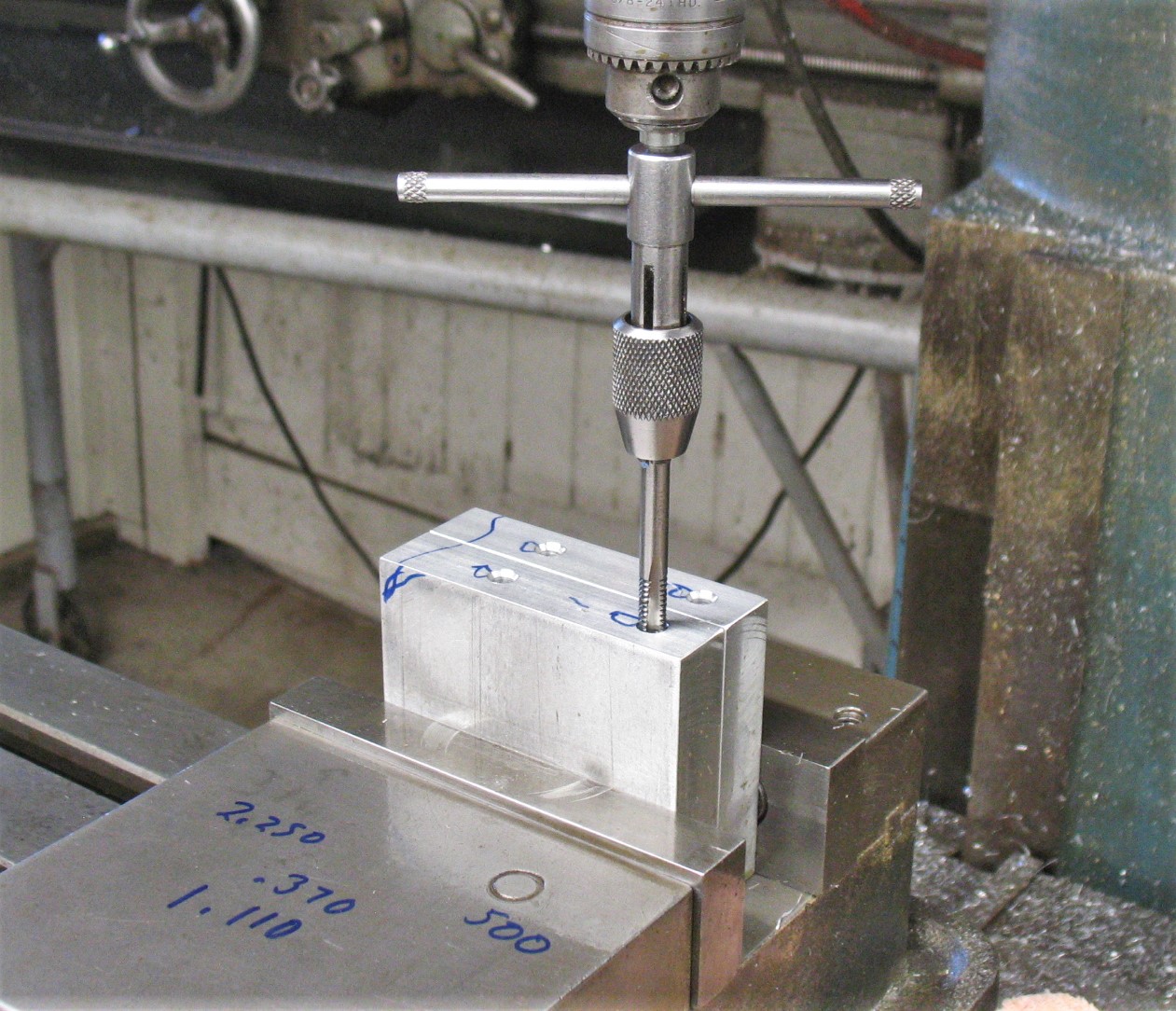

Drilled and Tapped Holes in Carriage
________
2/15/2022
Shopping, More Steel
________
2/14/2022
Made Spacer Plate and Attached Apron to Carriage
________
2/13/2022

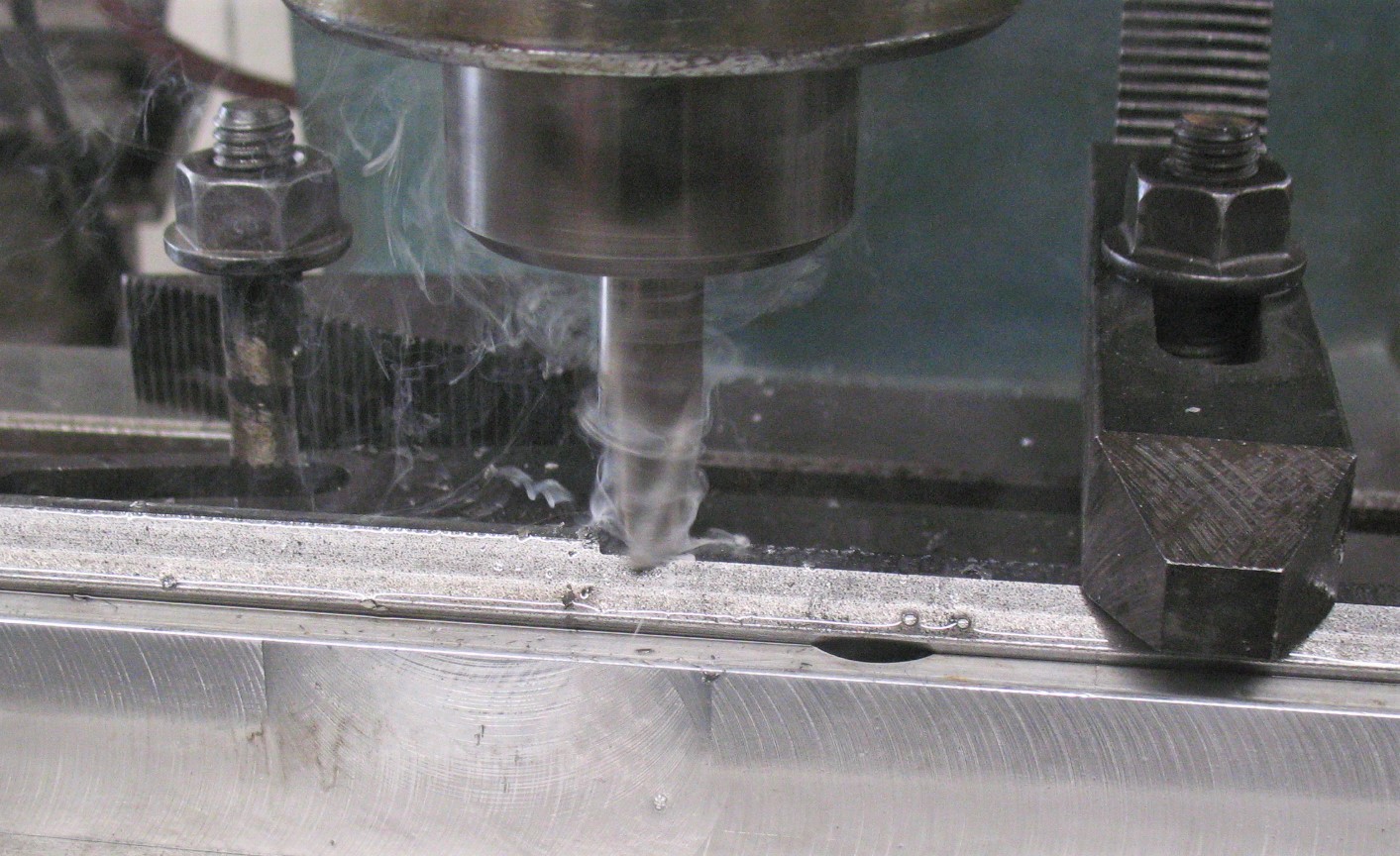

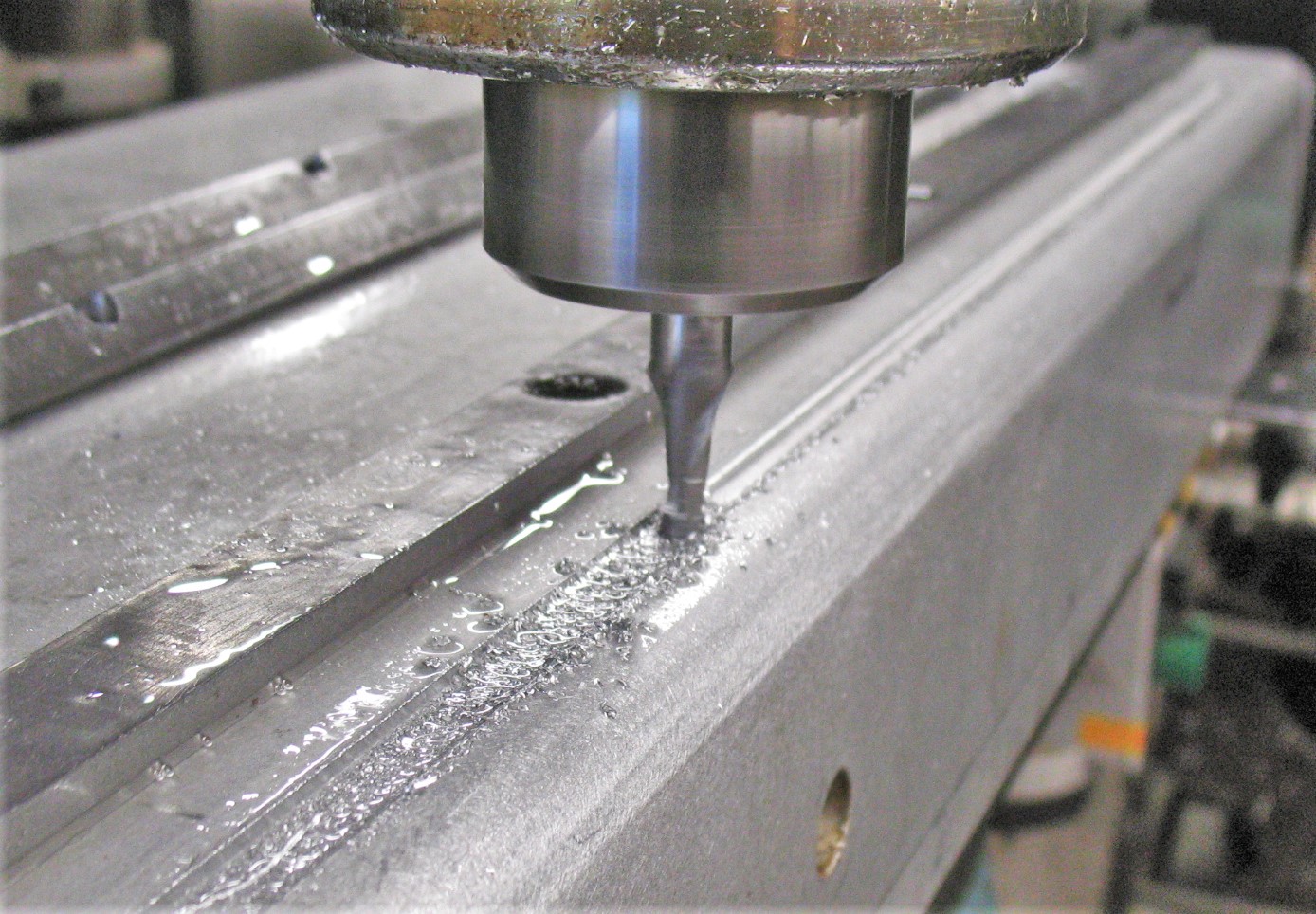

Tapped Bed for Bolts for Back Carriage Way, Milled Slot for Front Carriage Way
________
2/12/2022

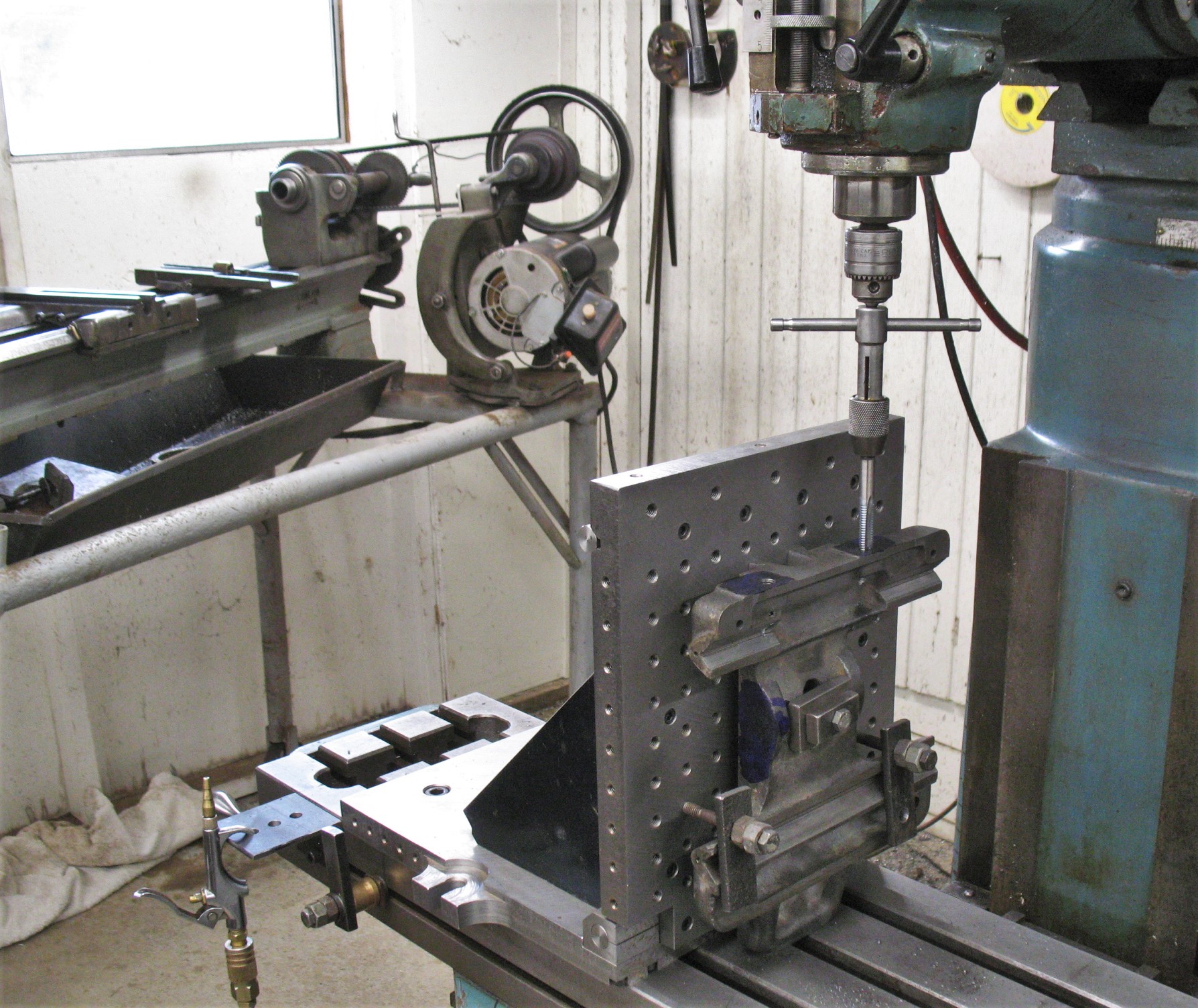

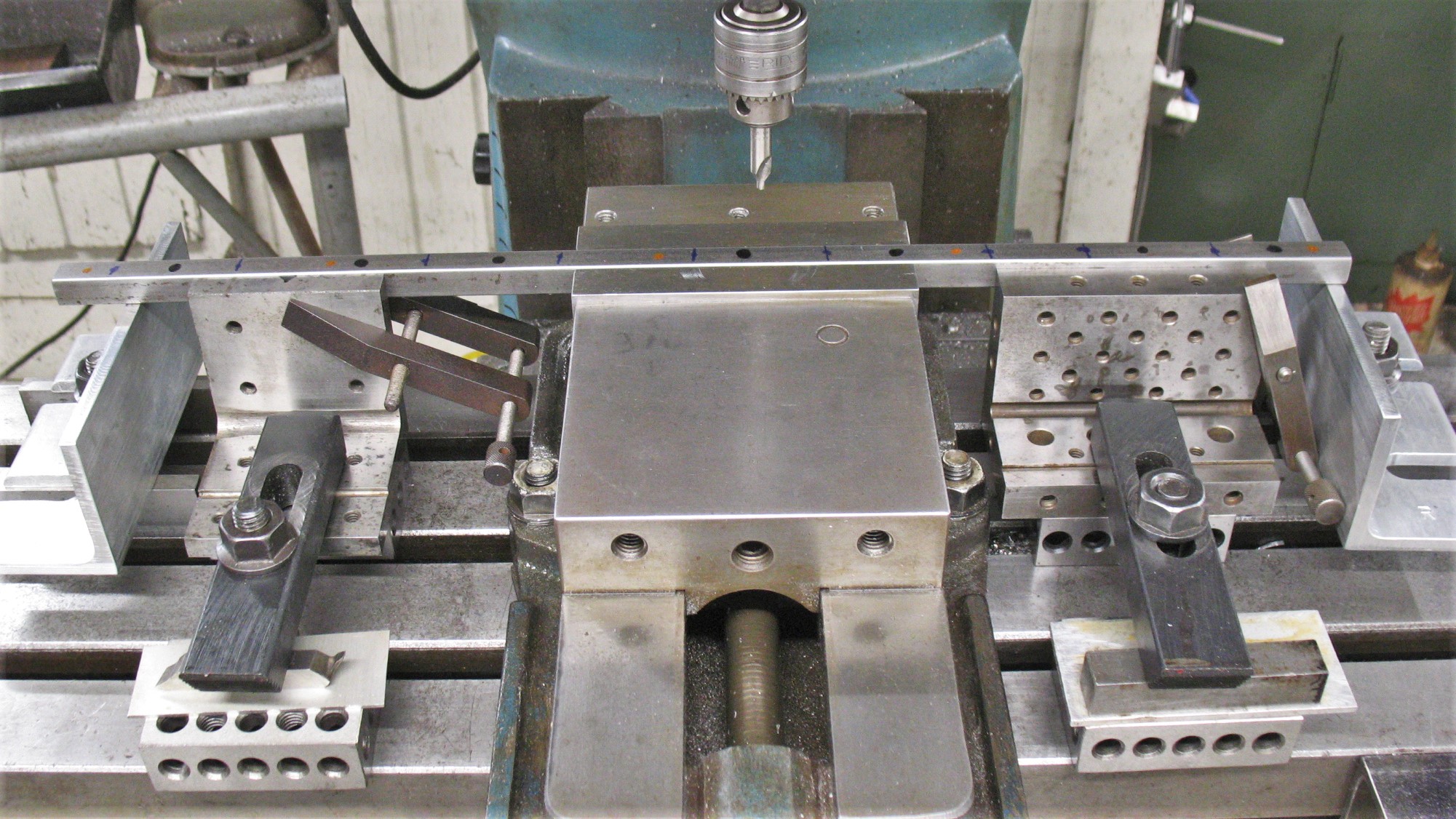

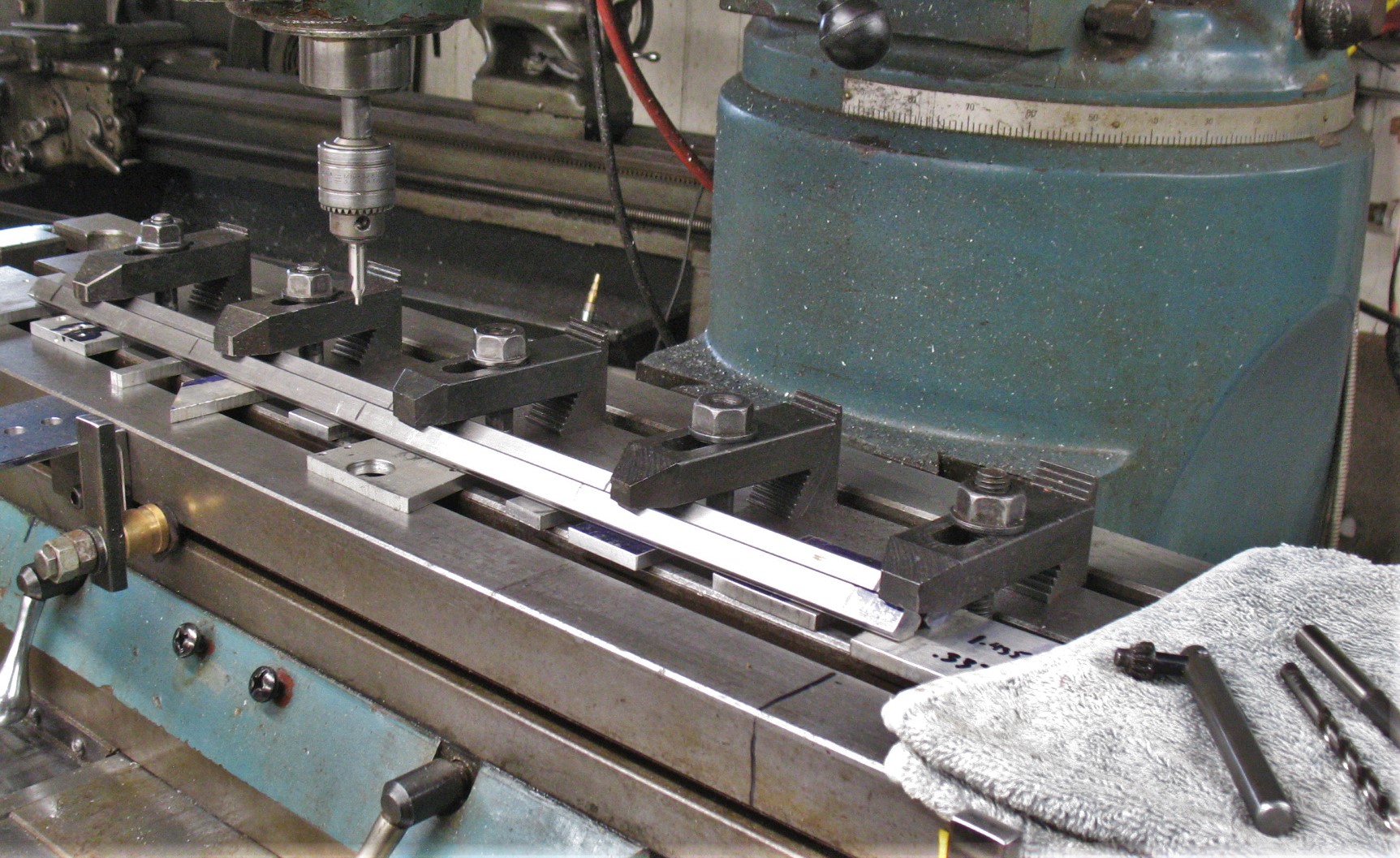

Set Up to Drill Bolt Holes in Carriage Ways
________
2/11/2022
More Work on Ways
________
2/10/2022

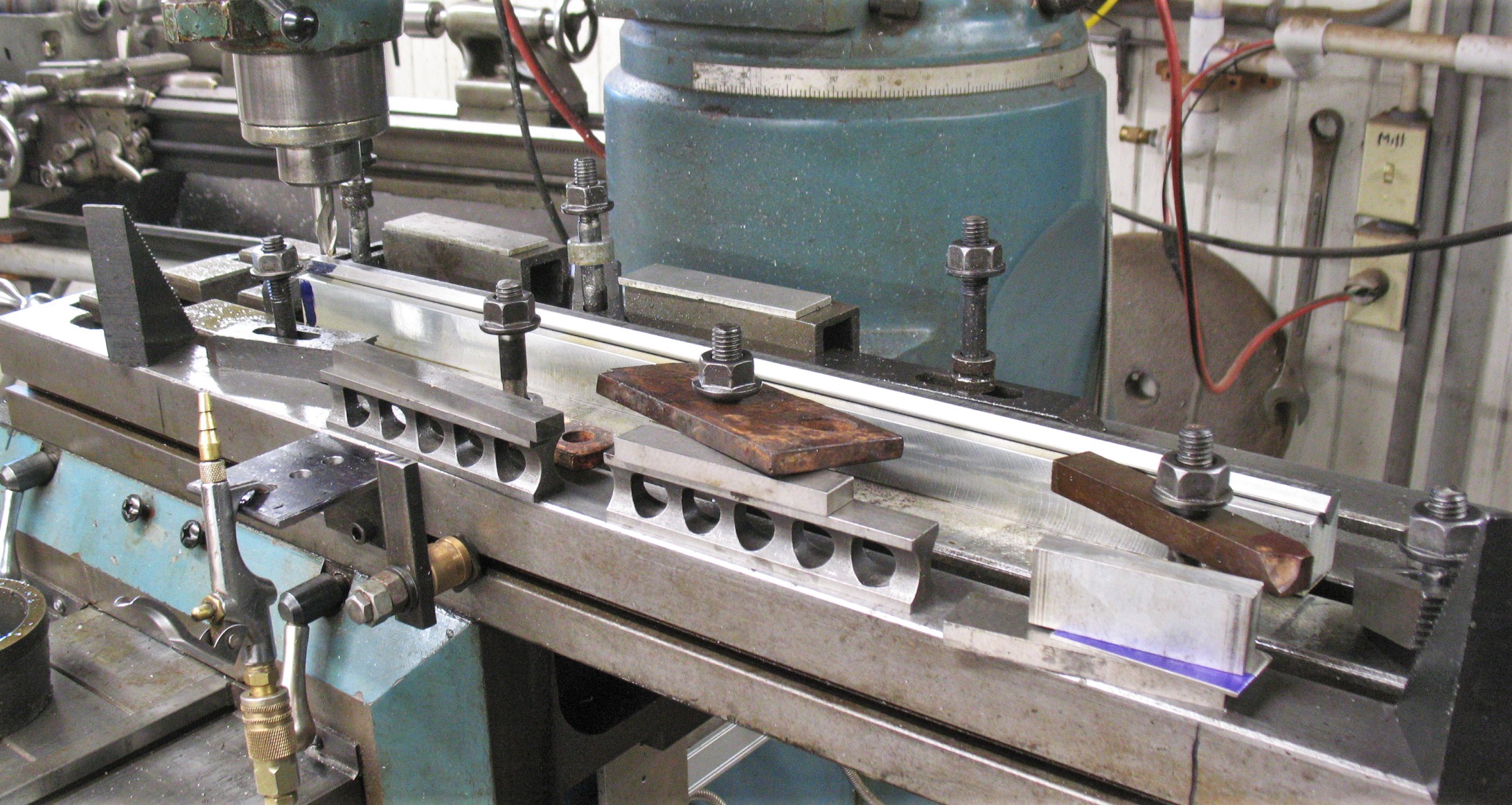

Started Ways for the Carriage
________
2/09/2022
Got More Steel
________
2/08/2022

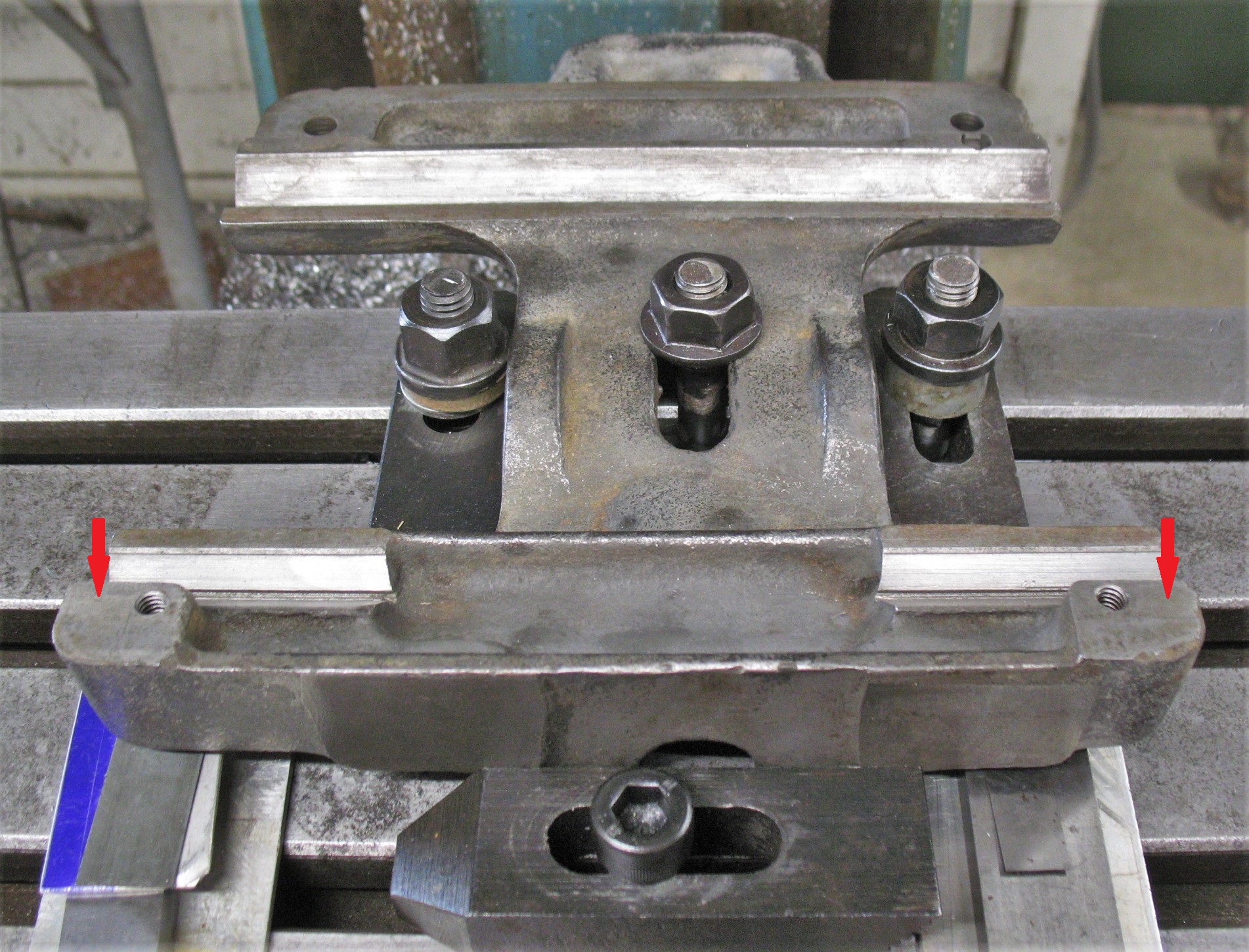

Milled 0.3215 off Pads for Back Clamp of Carriage
________
2/07/2022

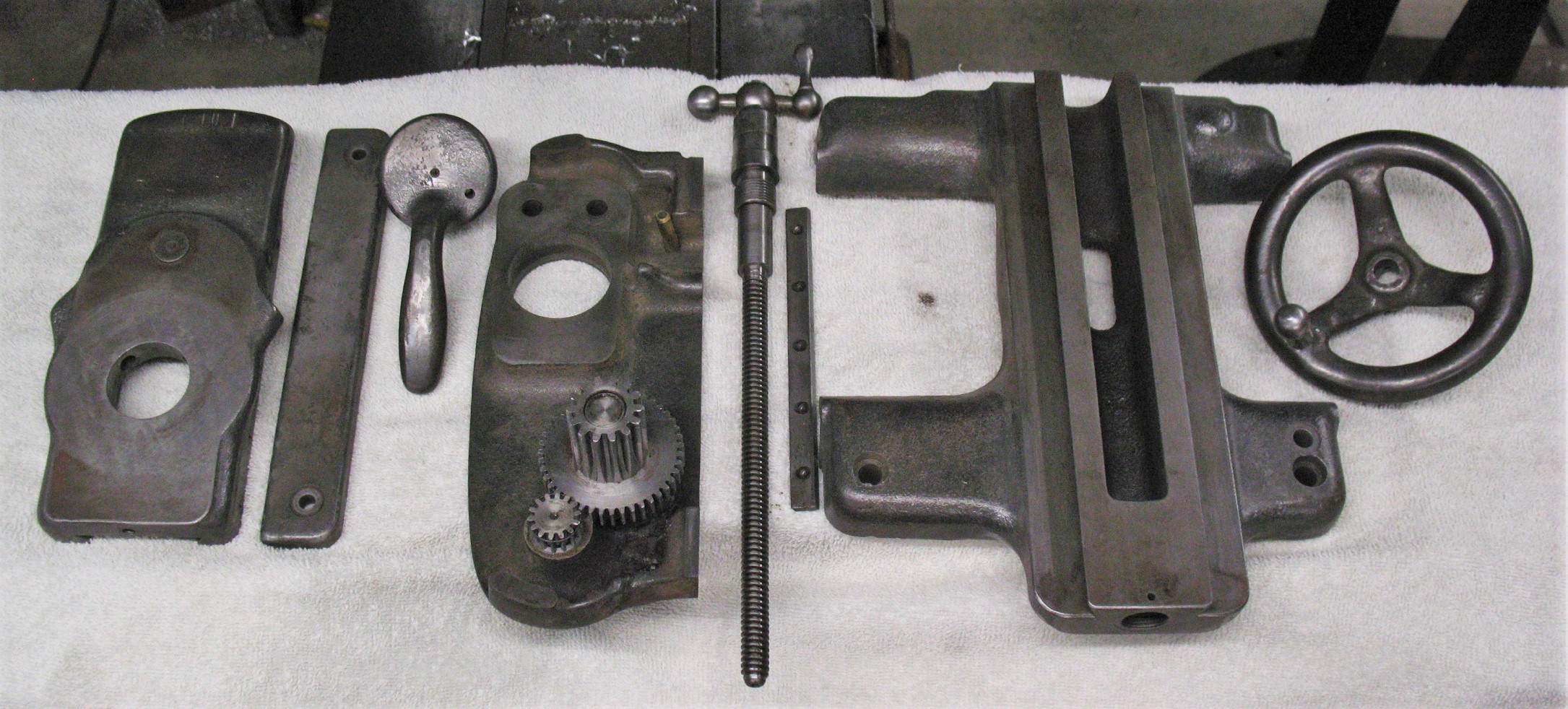

Carriage, Cross Slide and Apron Cleaned
________
2/06/2022

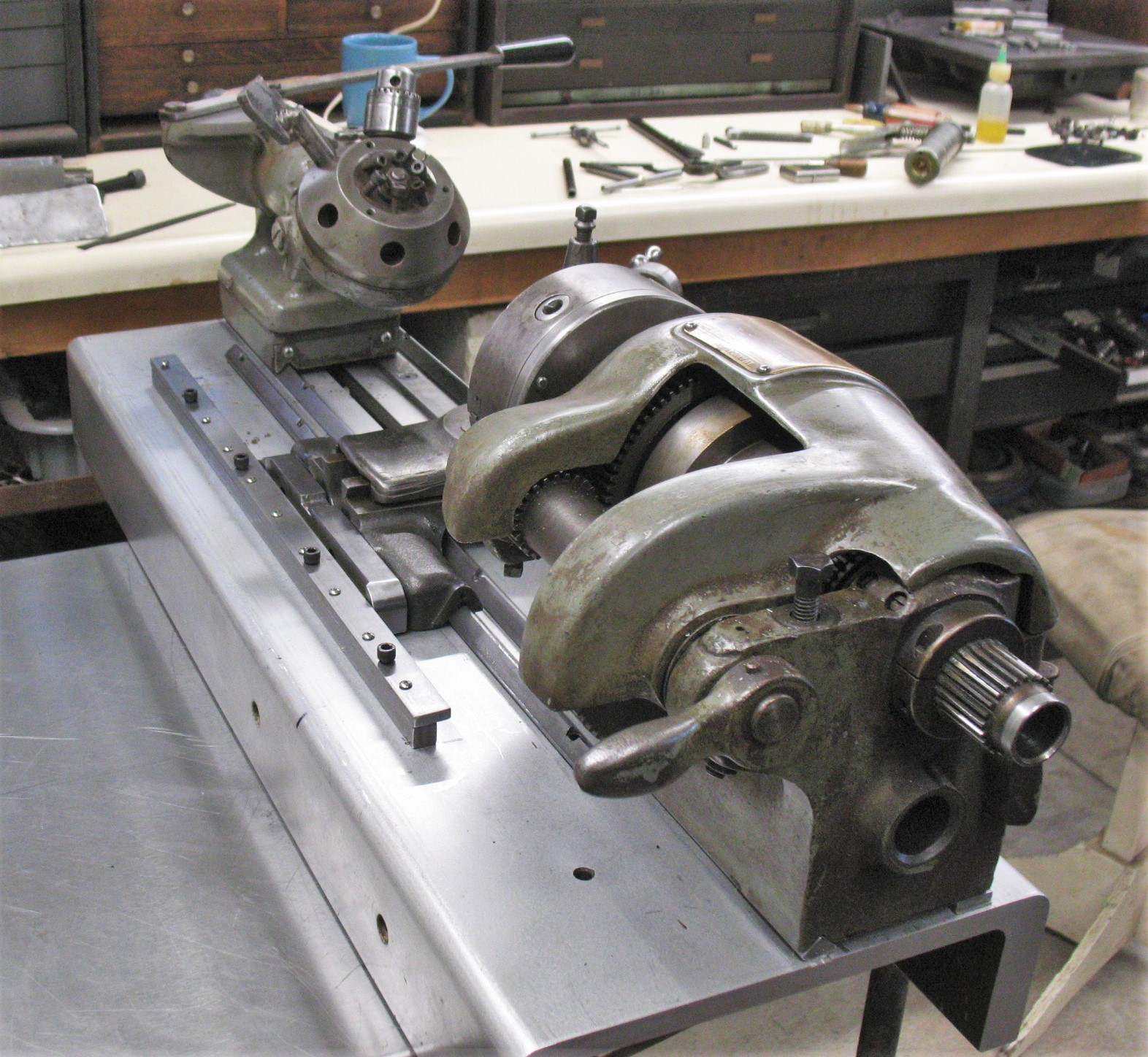

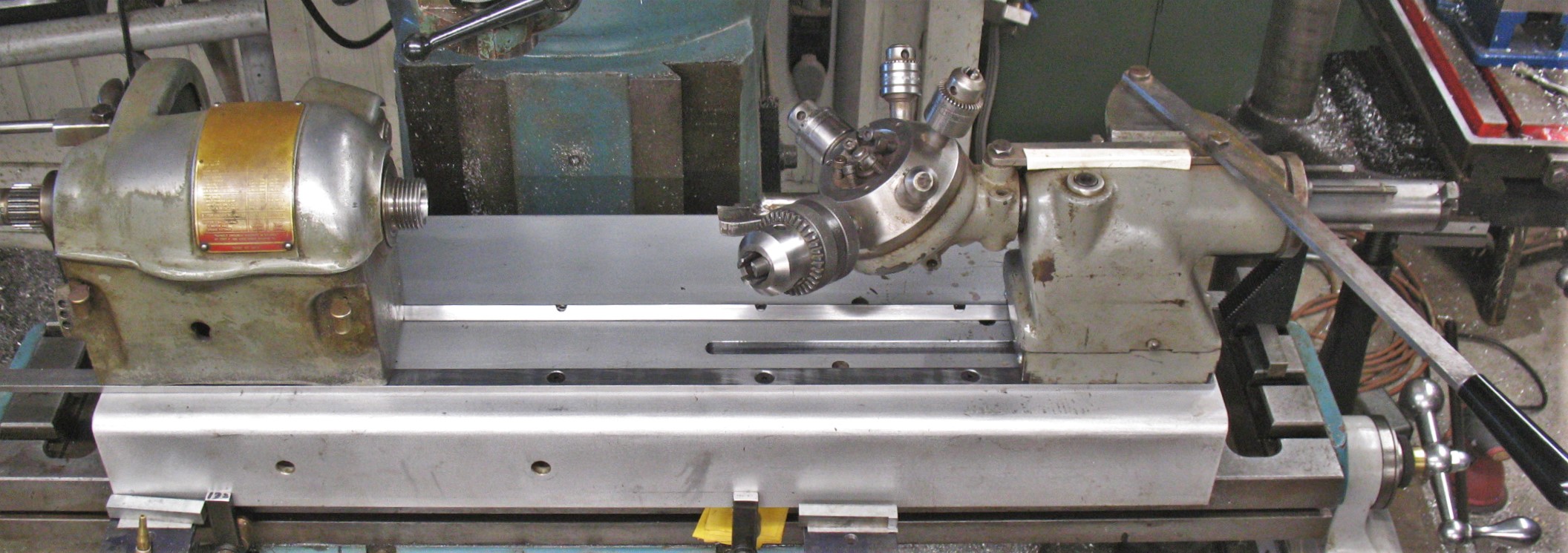

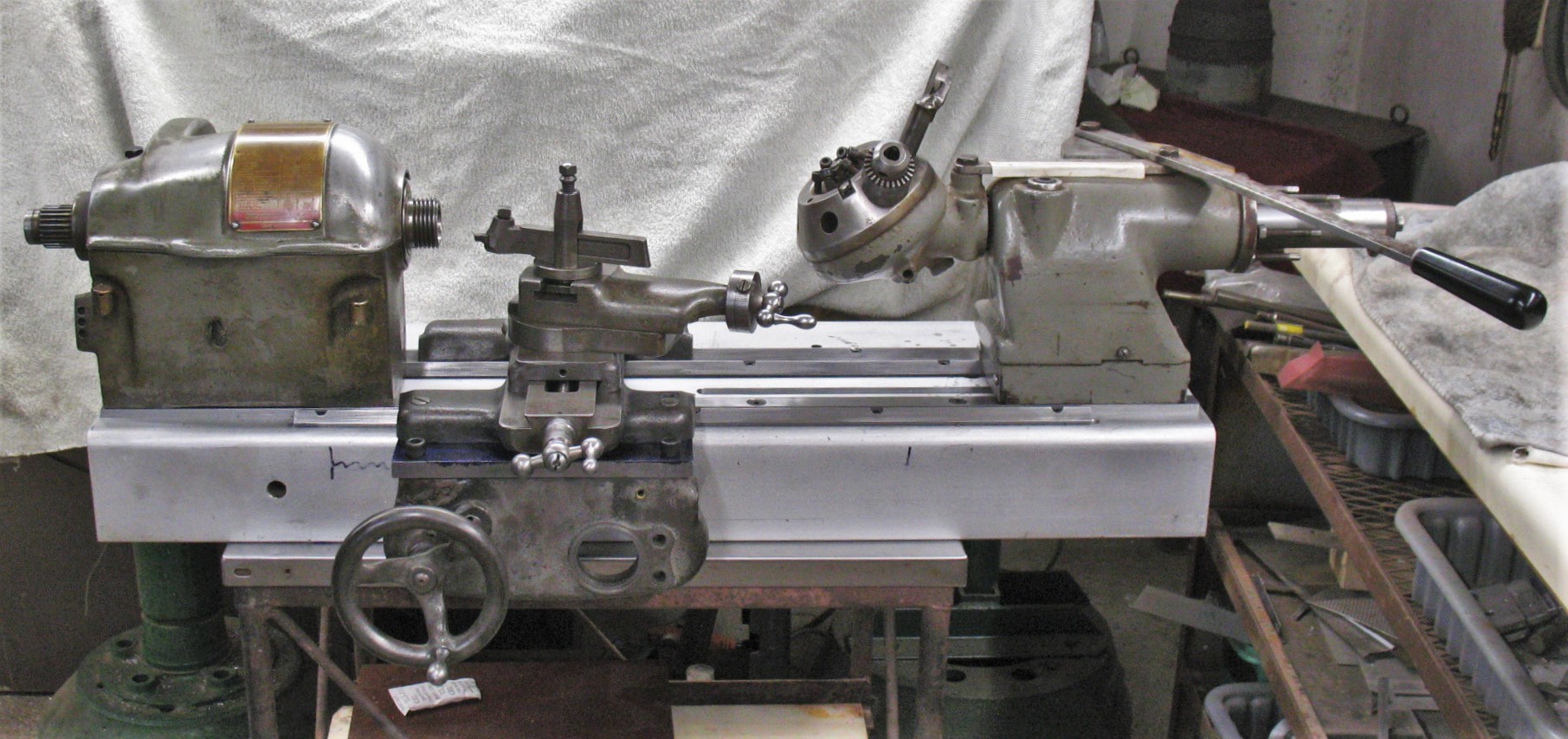

Ways, Head Stock and Tail Turret Mounted on Lathe Bed
________
2/05/2022

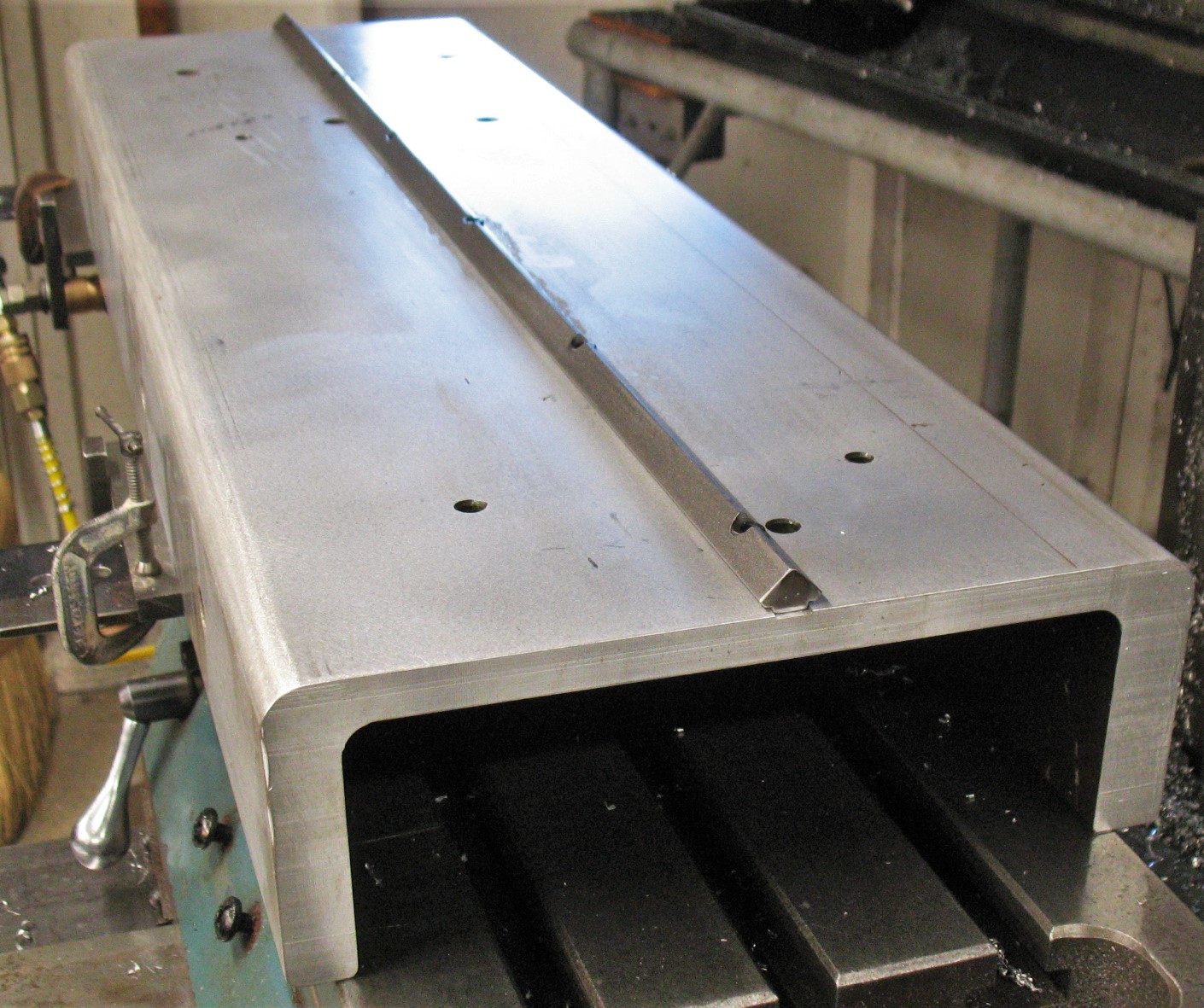

V Way Rail Mounted in Slot
________
2/04/2022

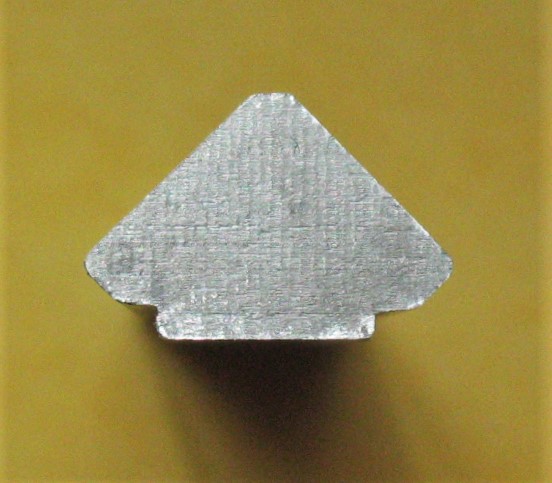

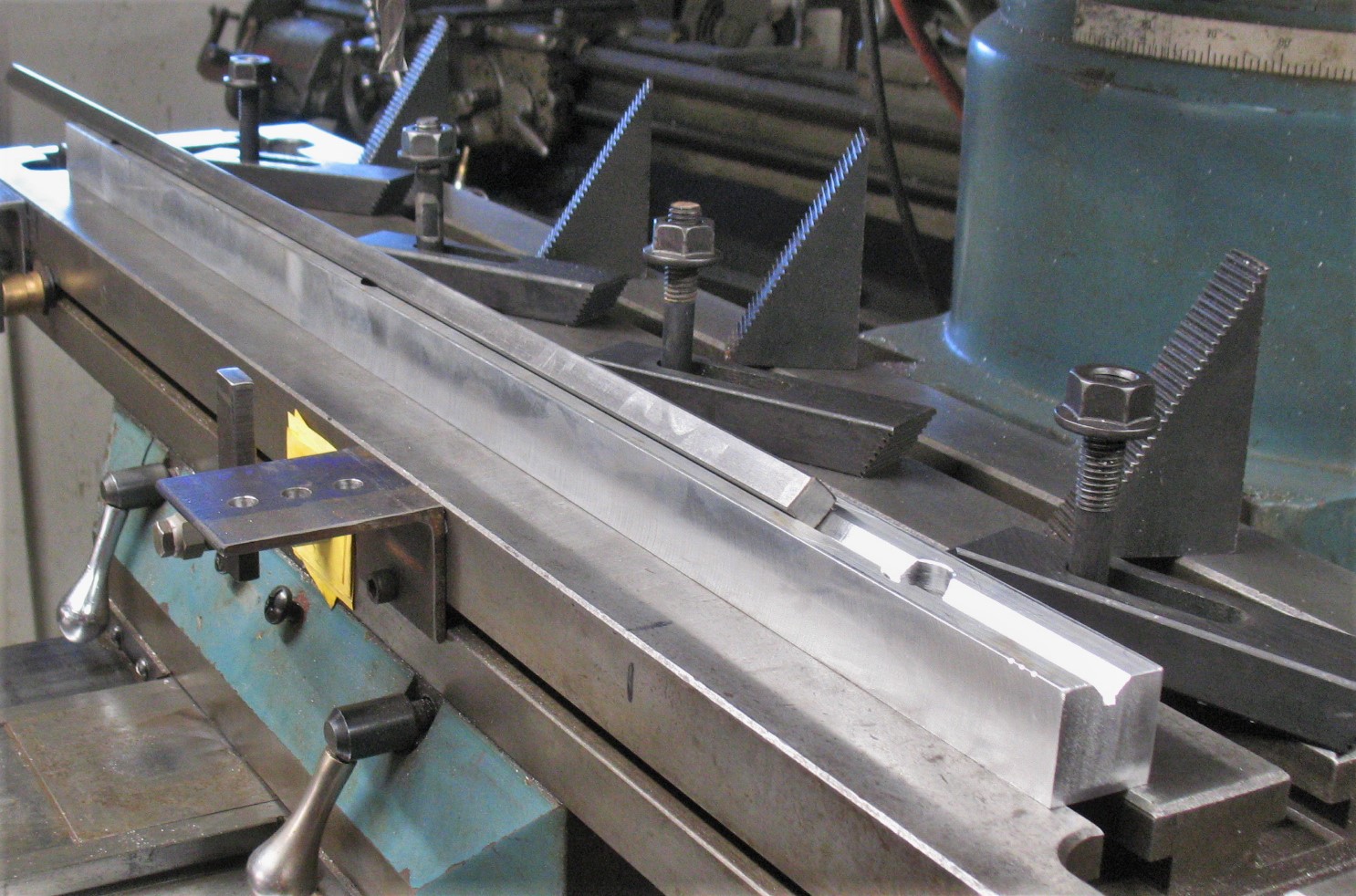

Made 32.5 " of Way that looks like this.
________
2/03/2022

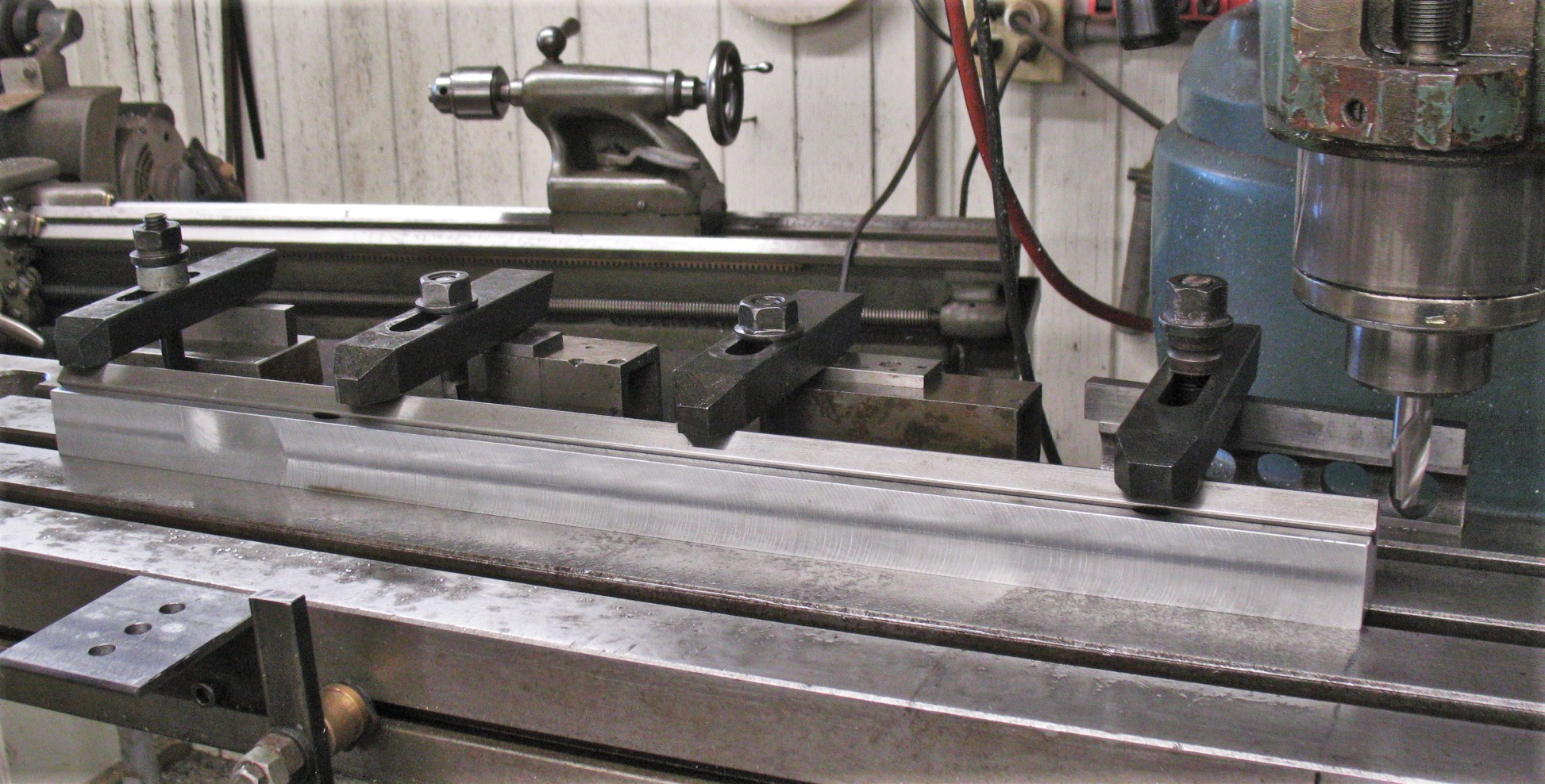

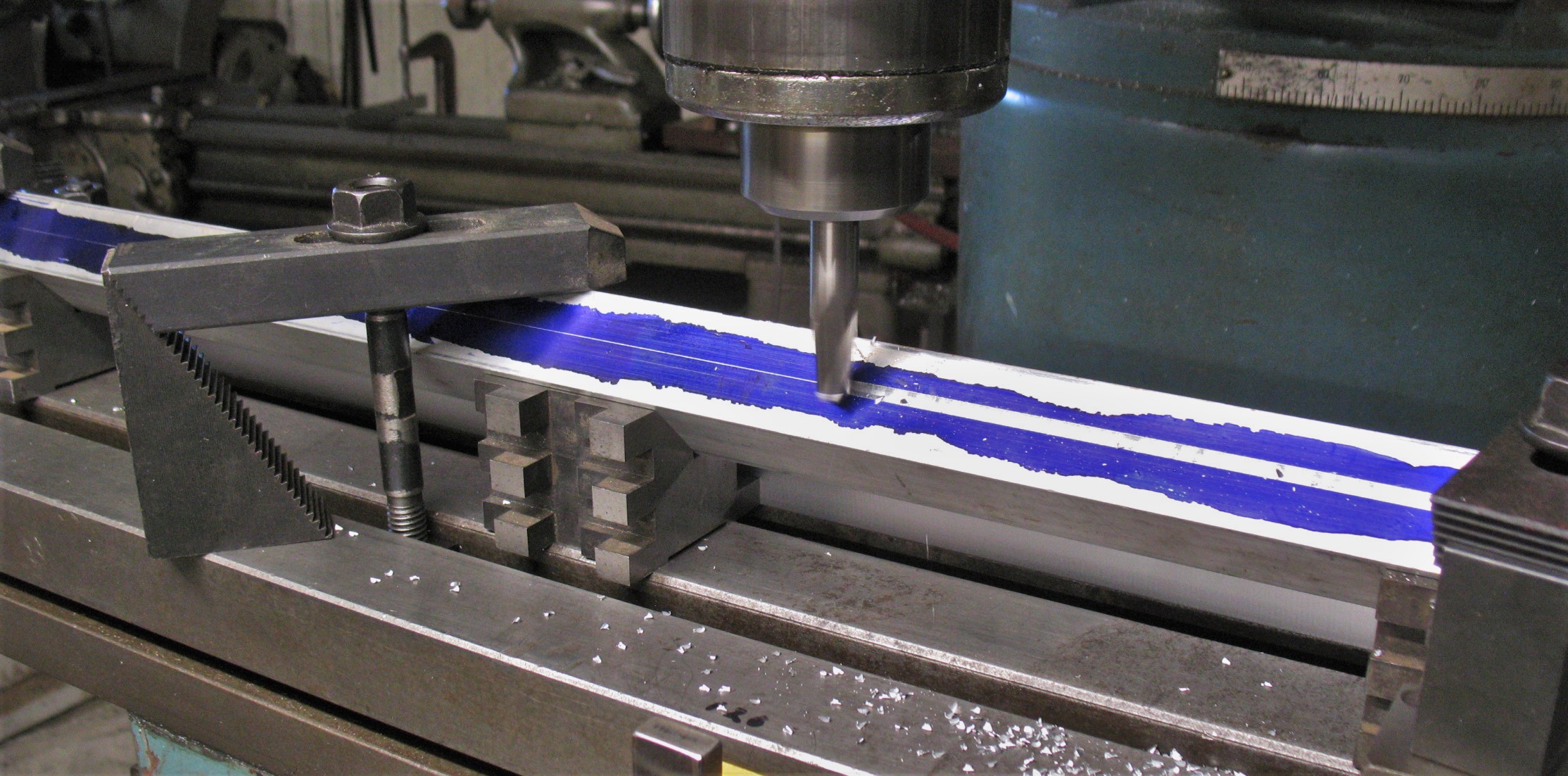

Worked on Ways
________
2/02/2022
Finished Long V Block Tooling for Lathe Ways
________
2/01/2022
Started Tooling to Make Ways for Lathe
